Segment Dimensions

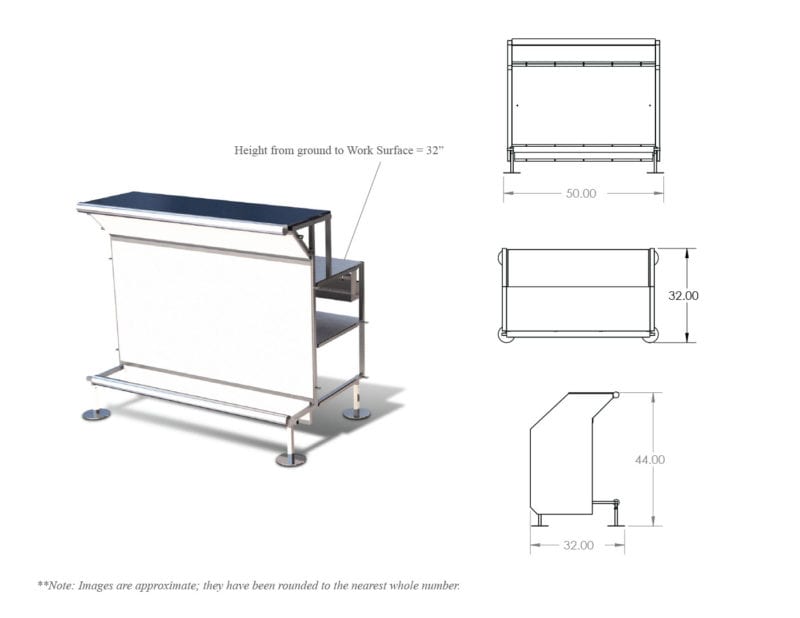

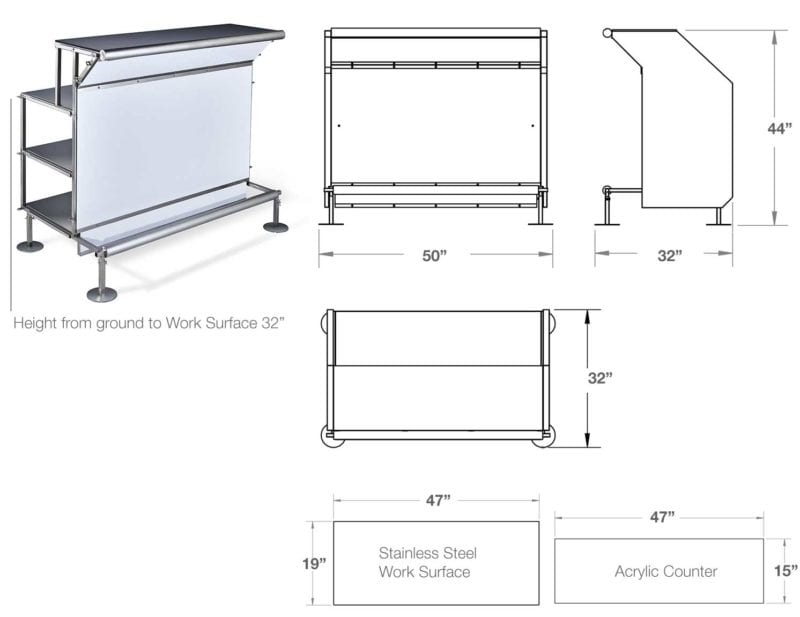

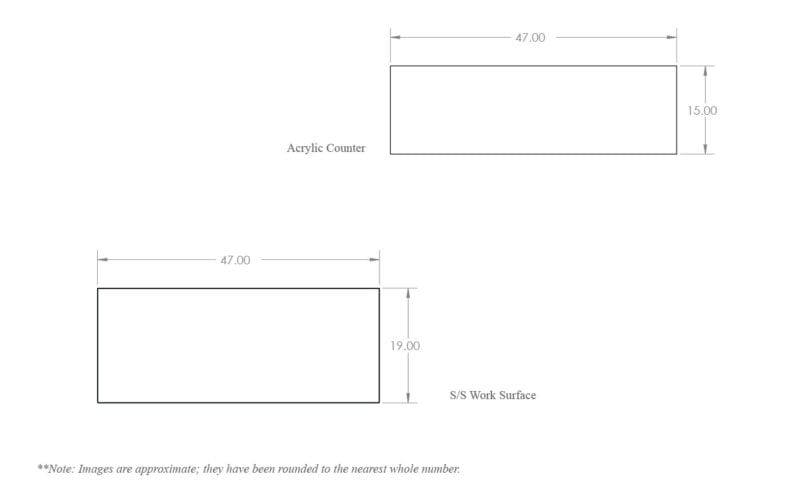

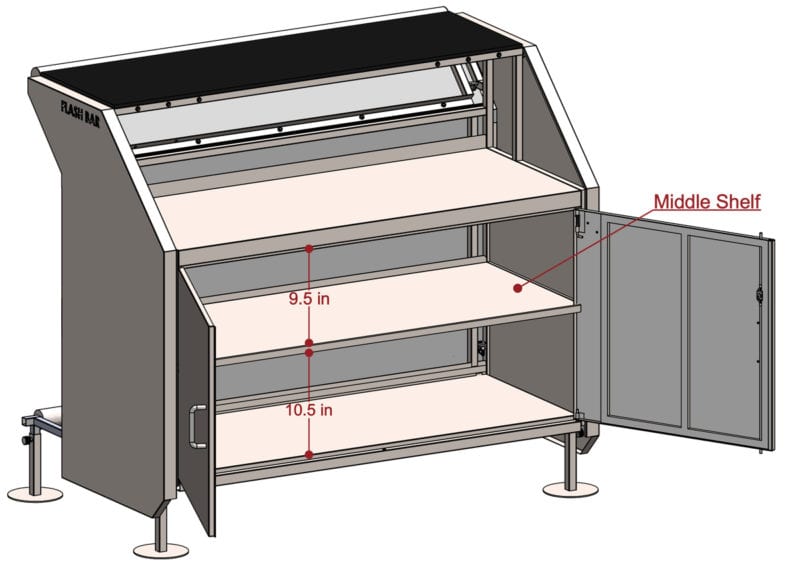

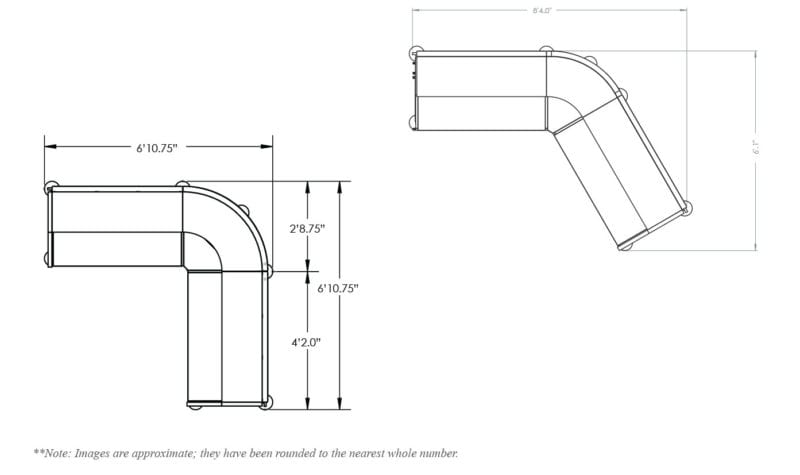

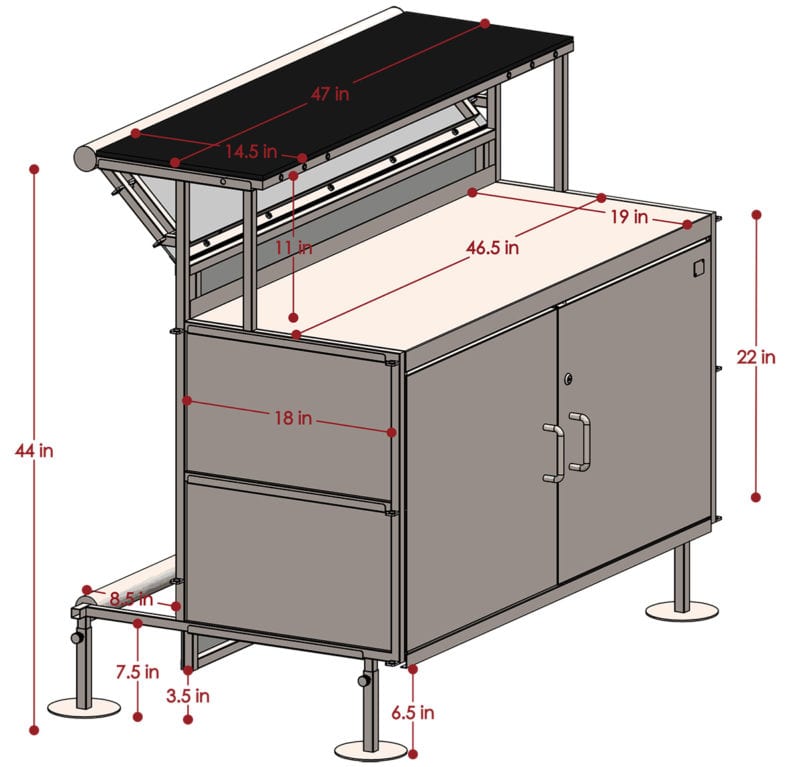

Straight Segment

Download PDF File

Compatible Refrigeration Equipment

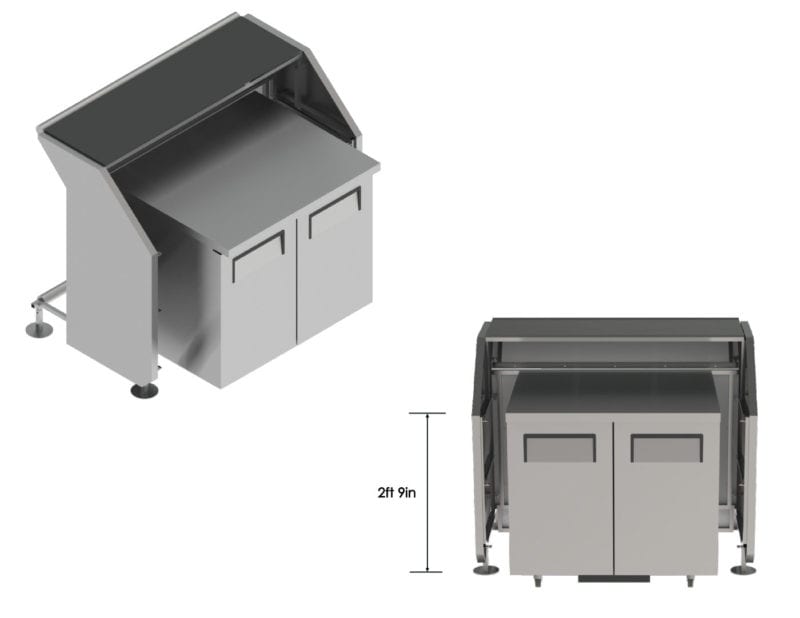

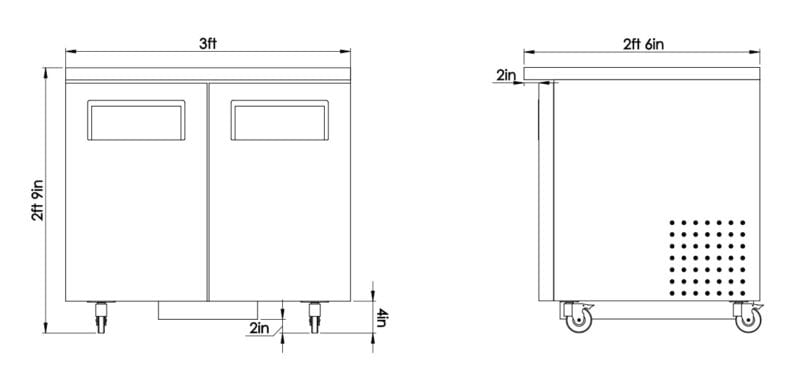

TUC 36 ADA Undercounter

Download PDF File

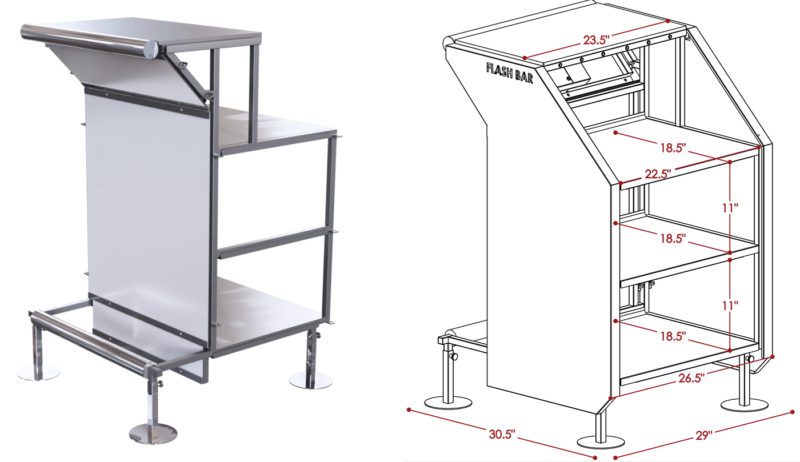

2ft Segment

Download PDF File

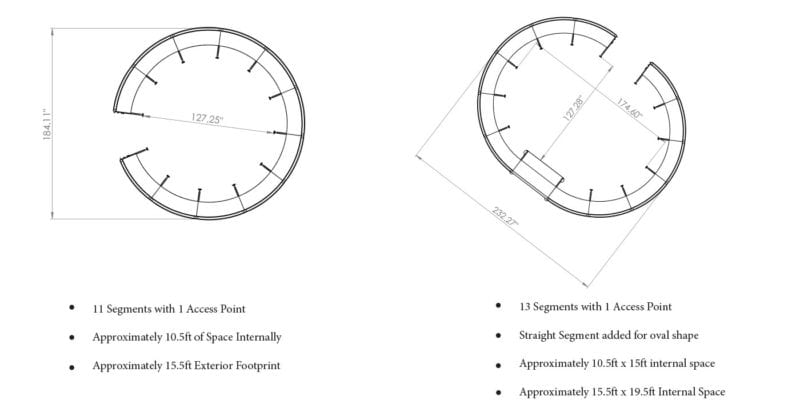

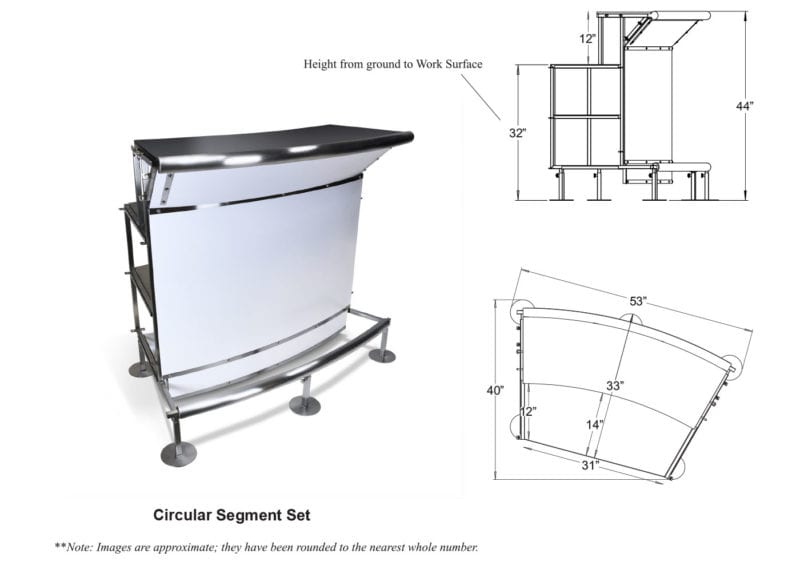

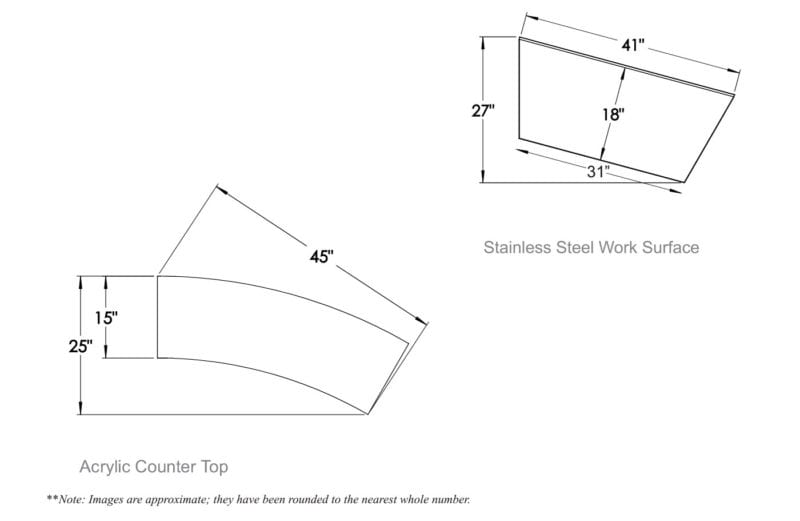

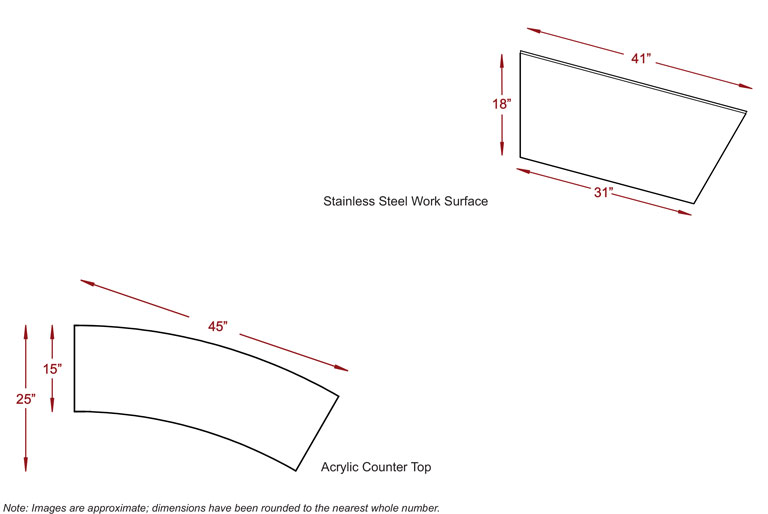

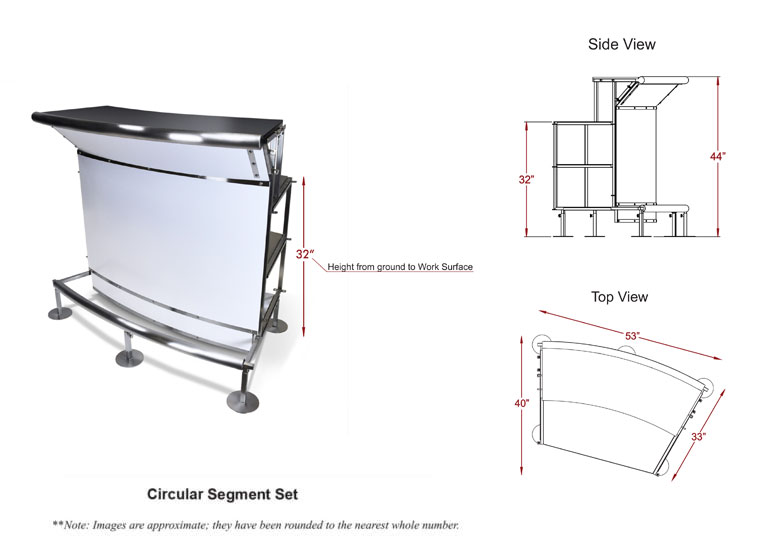

Circular Segment

Download PDF File

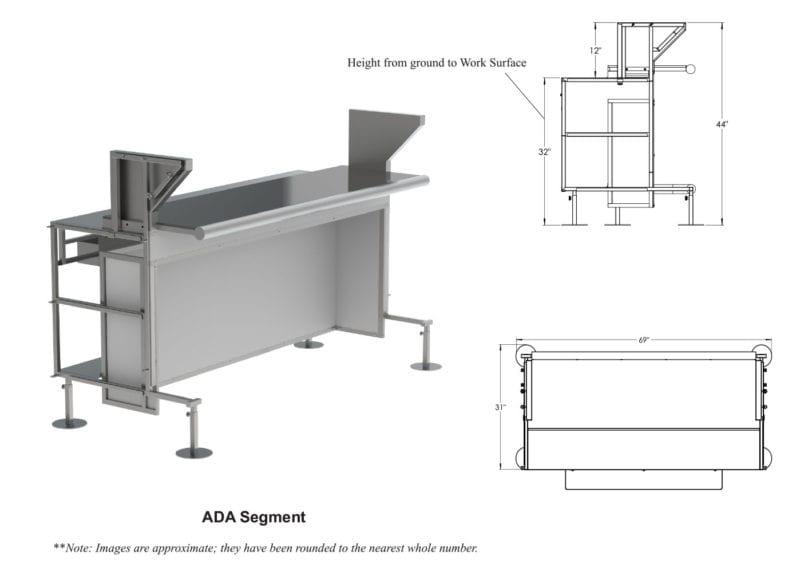

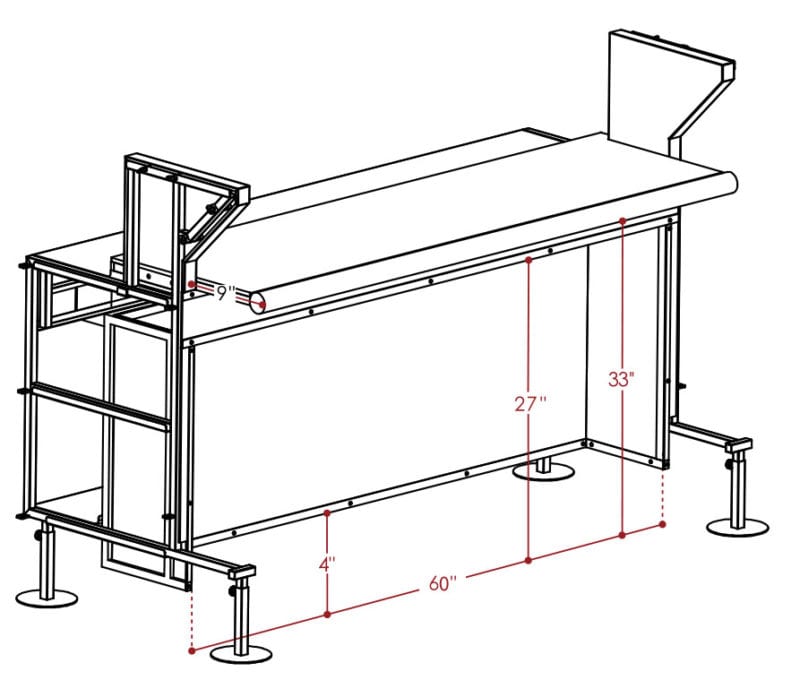

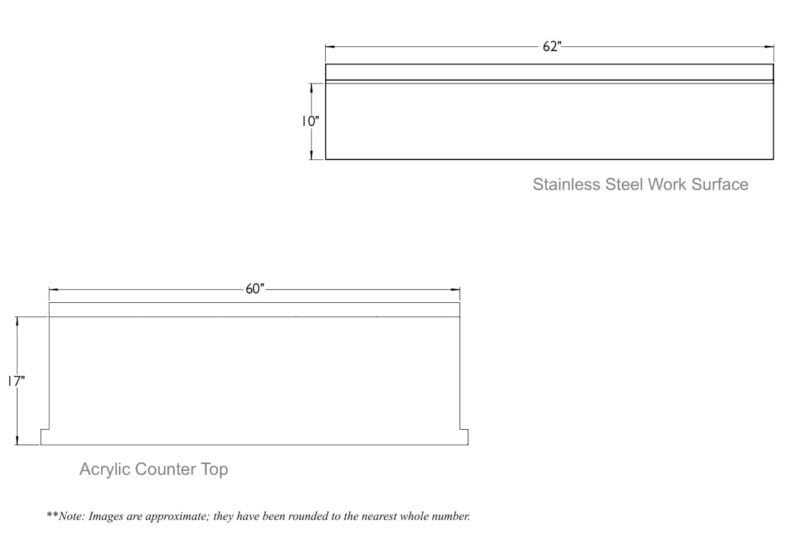

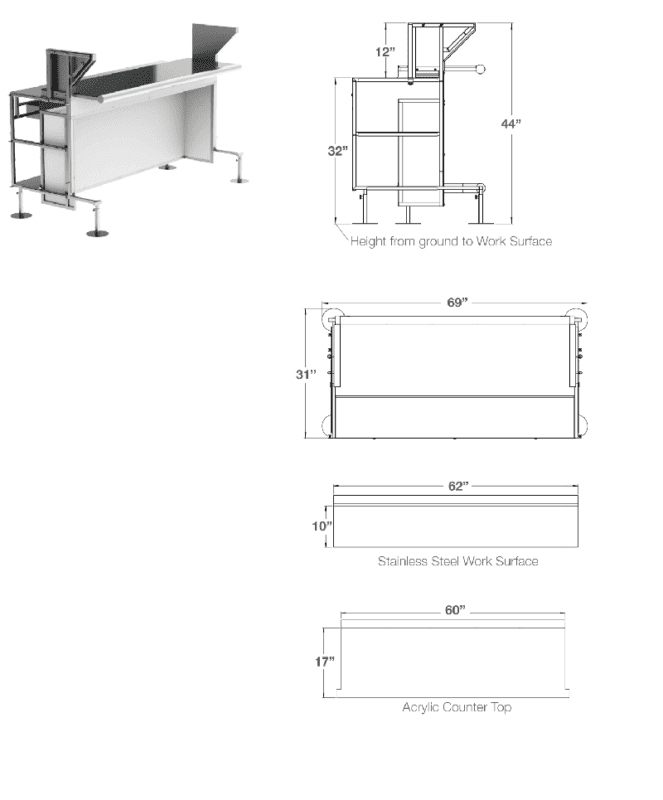

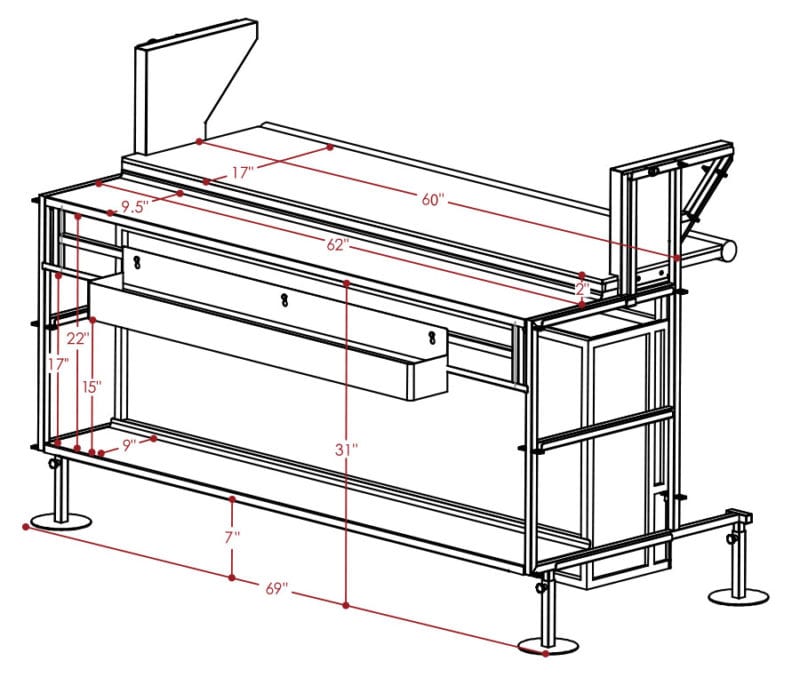

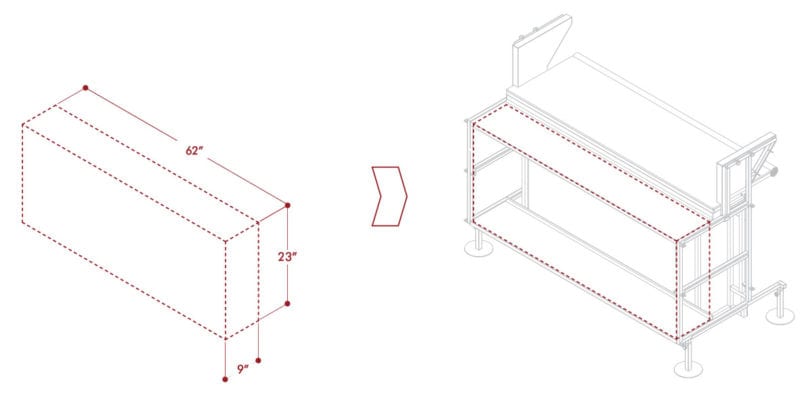

ADA-Compliant Segment

Download PDF File

Height: 3′ 8″

Width: 5′ 8″

Depth: 3′

Available space

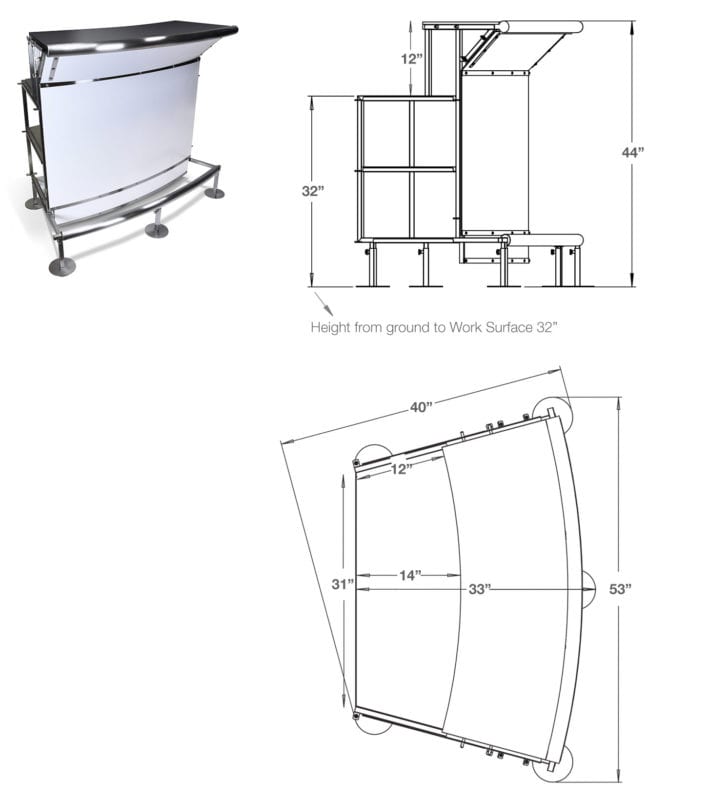

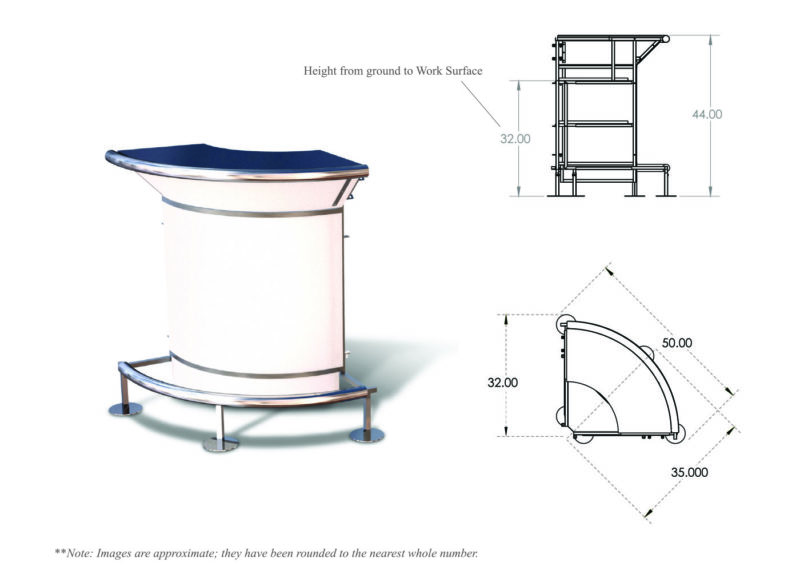

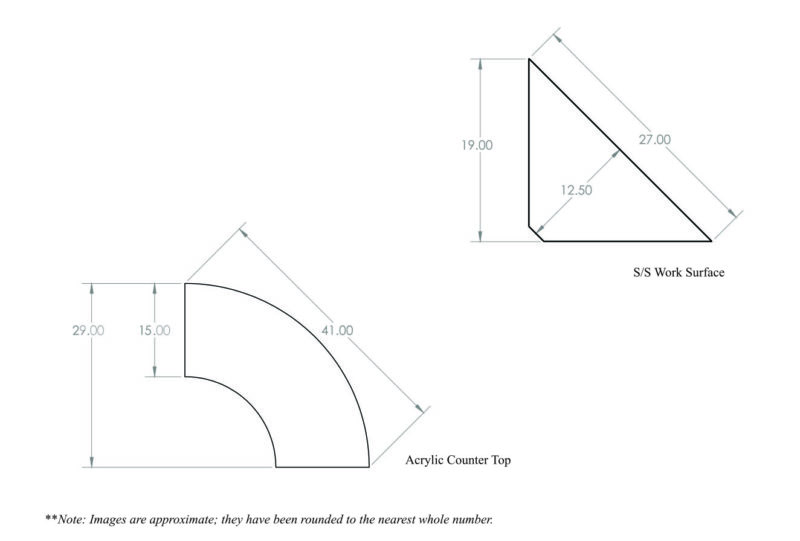

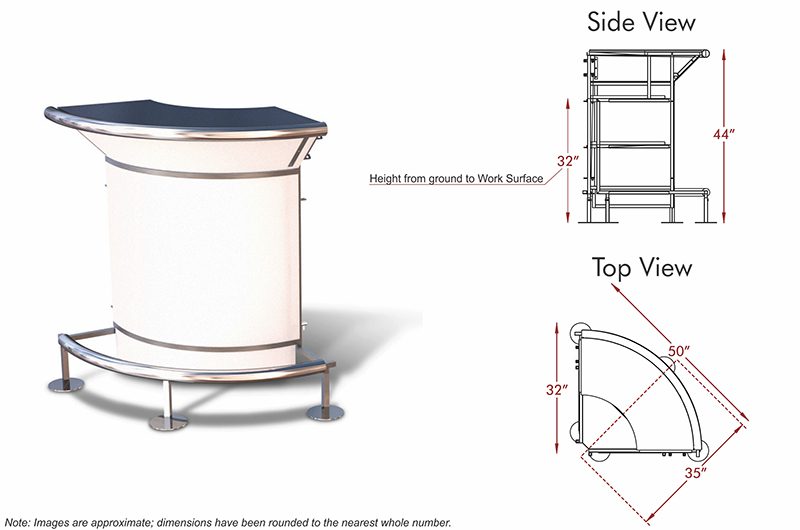

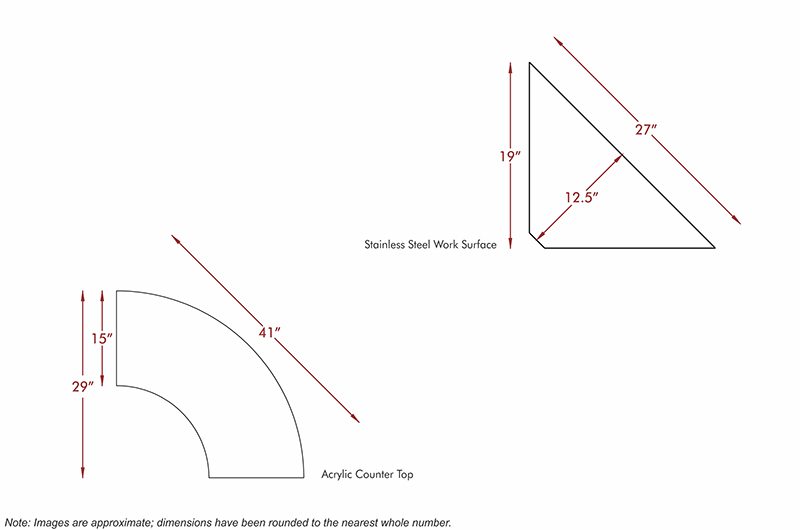

900 Corner Segment

Download PDF File

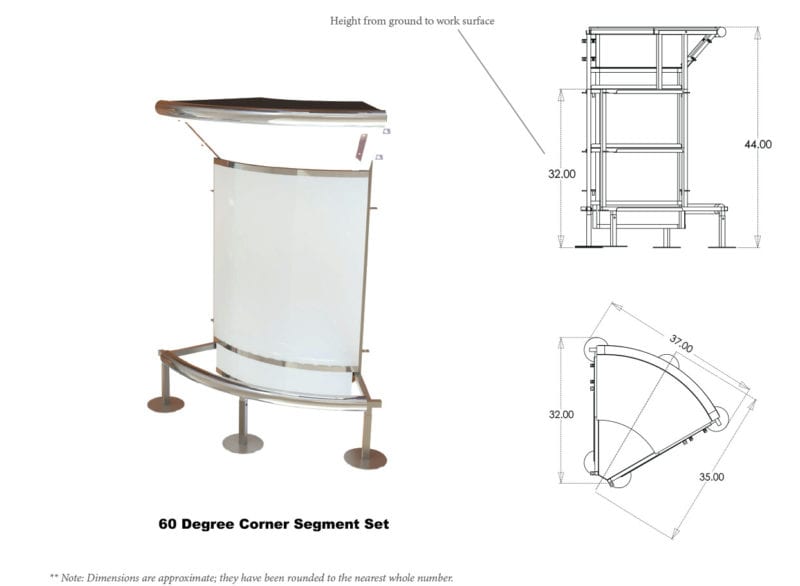

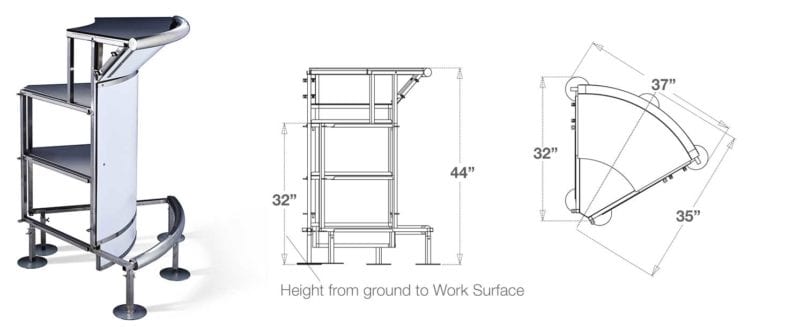

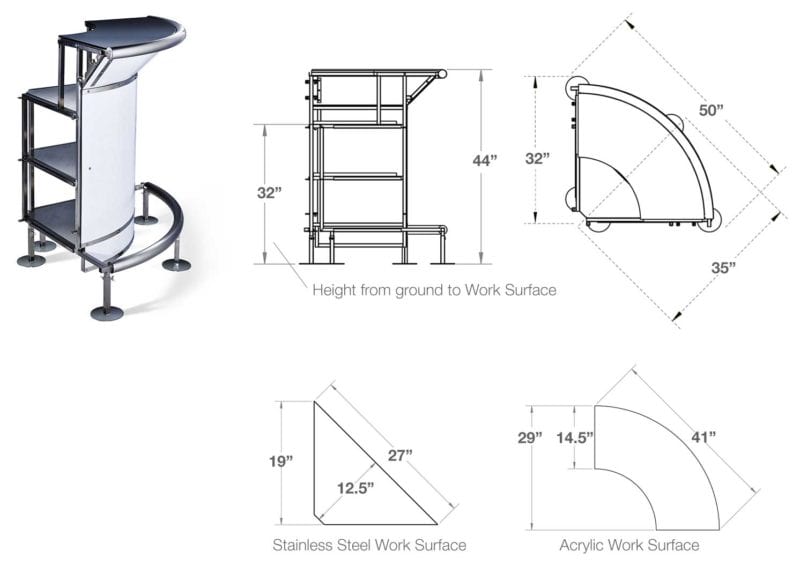

600 Corner Segment

Download PDF File

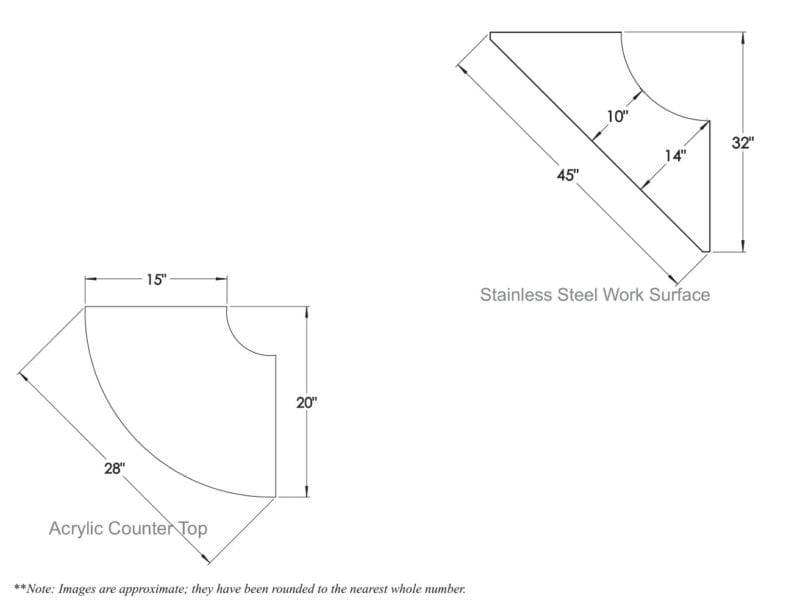

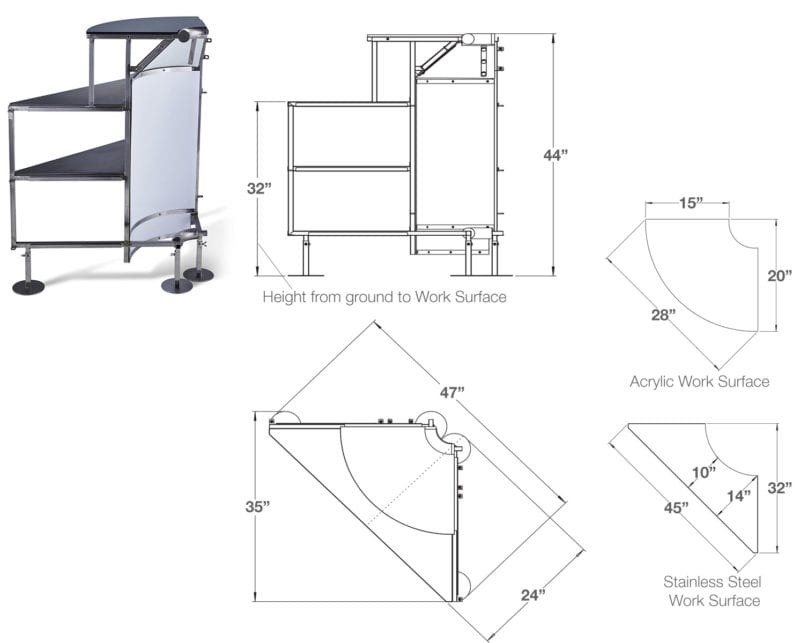

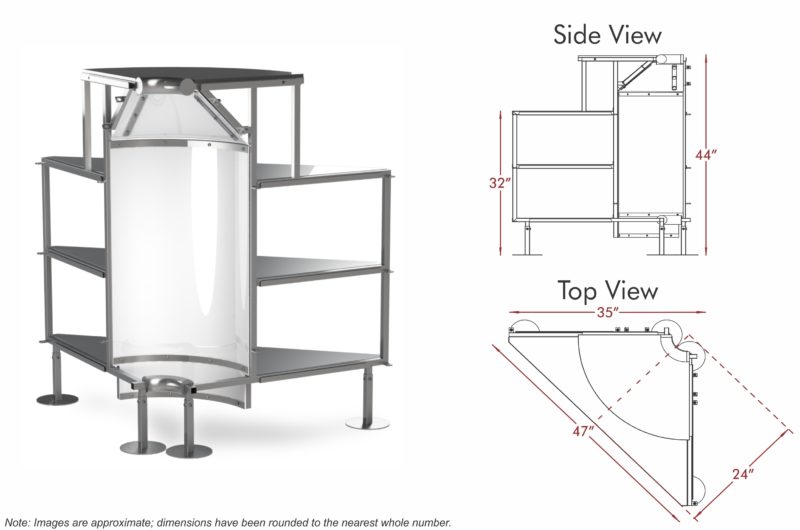

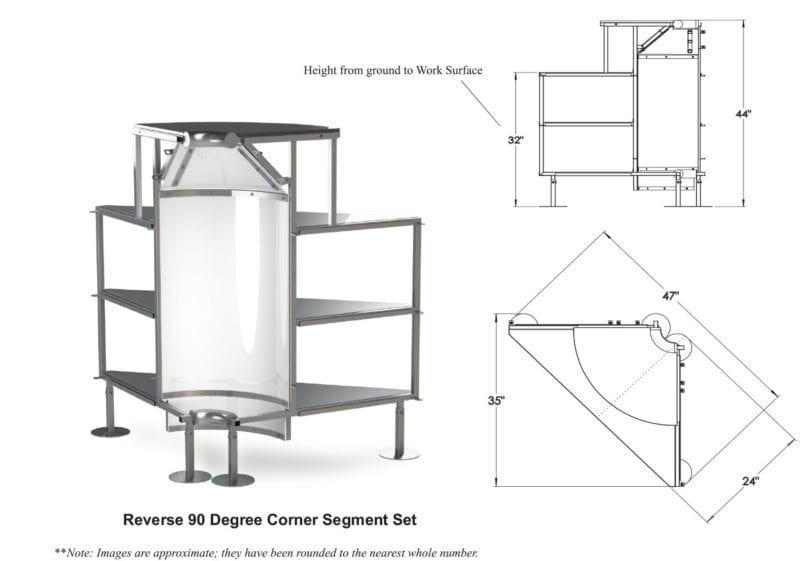

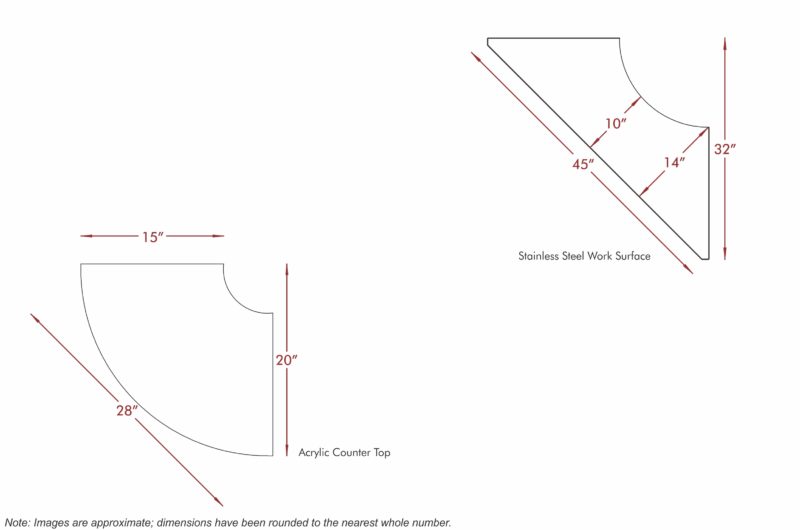

Reverse 900 Corner Segment

Download PDF File

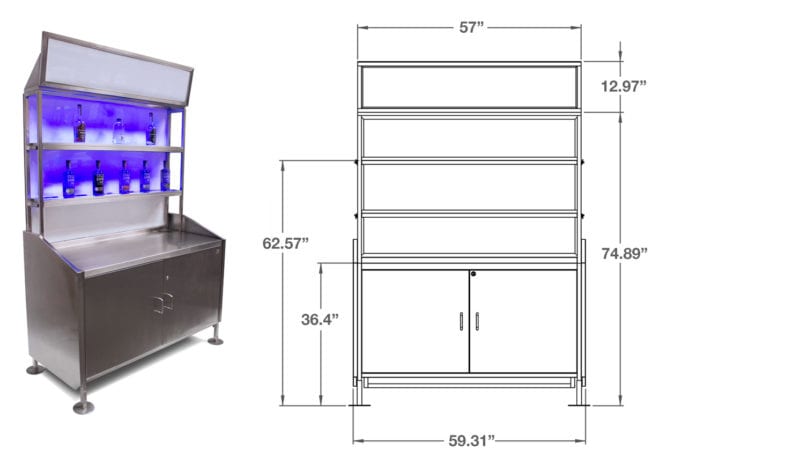

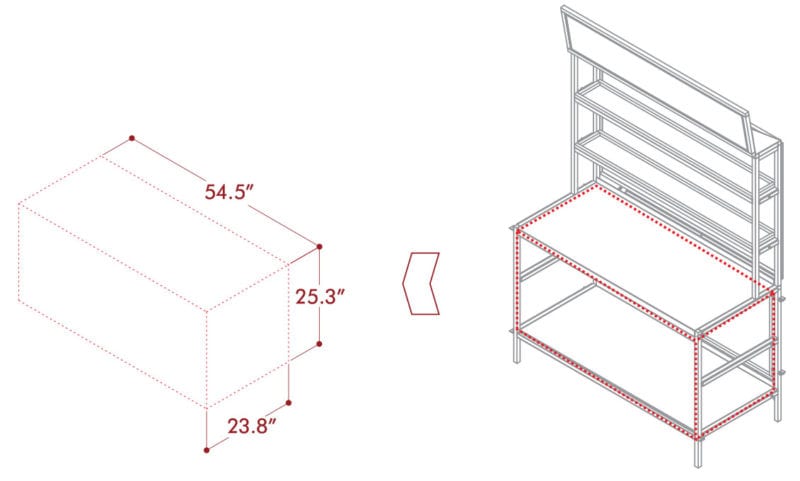

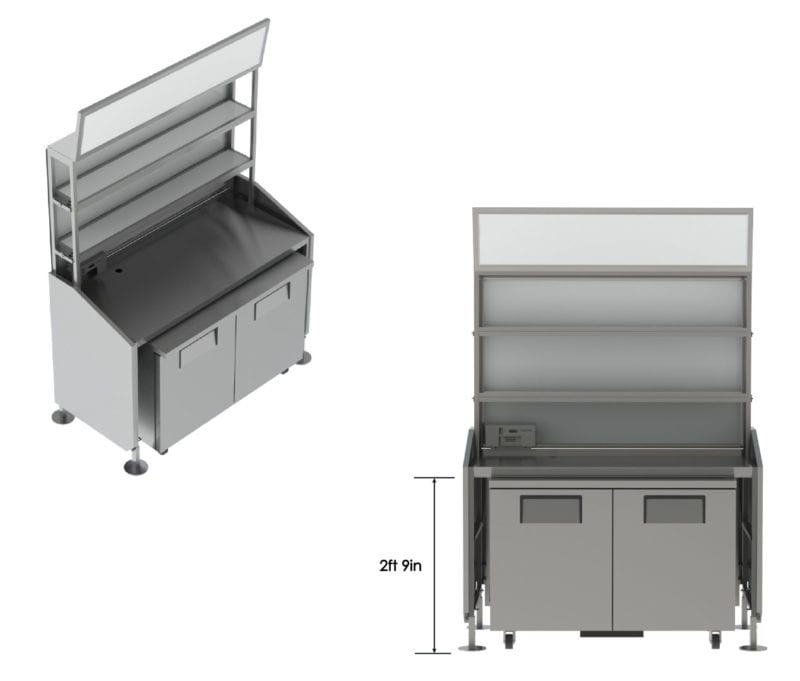

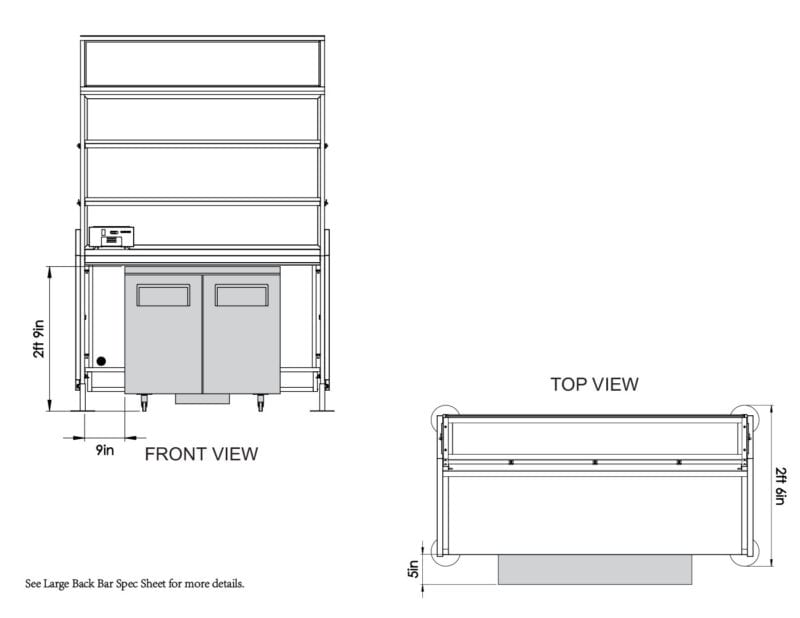

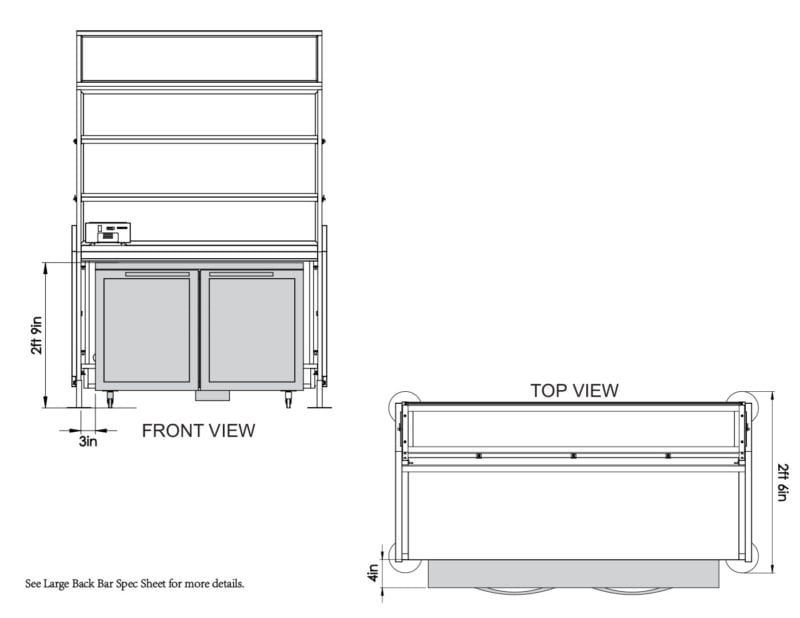

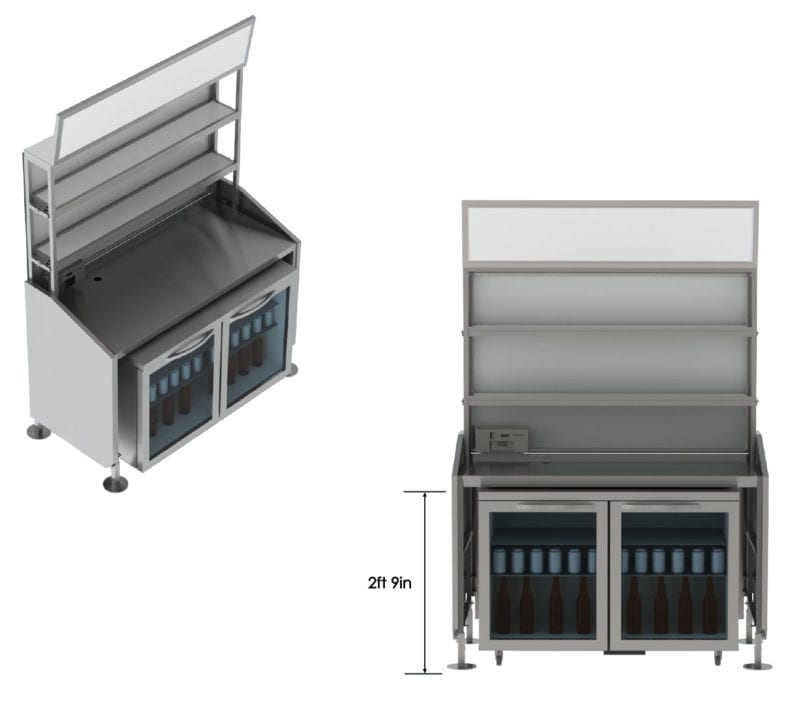

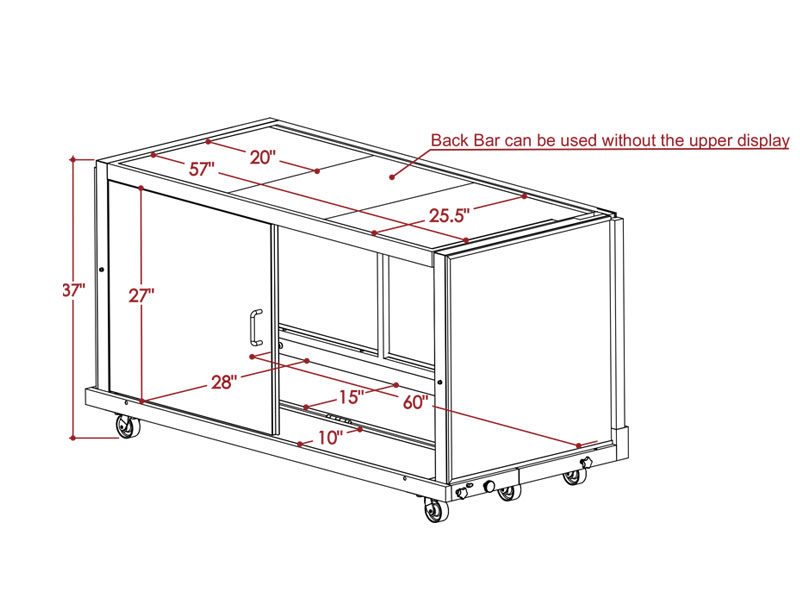

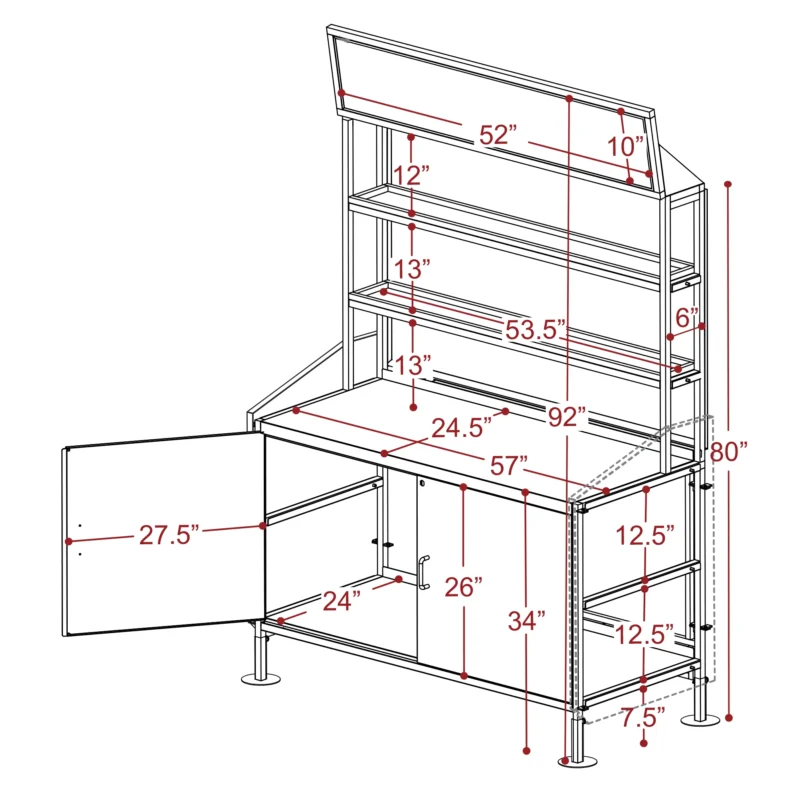

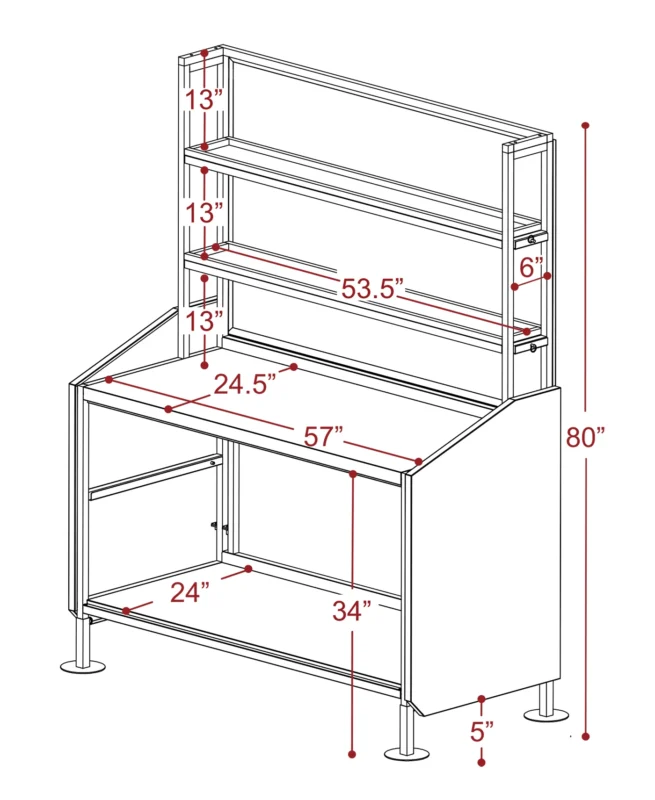

Large Back Bar

Download PDF File

Base Model

Height: 6′ 3″

Width: 5′ 2″

Depth: 2′ 7″

Weight: 186 lbs

Base Model

With Add-ons

Height: 7′ 4″

Width: 5′ 2″

Depth: 2′ 7″

Weight: 324 lbs

With Add-ons

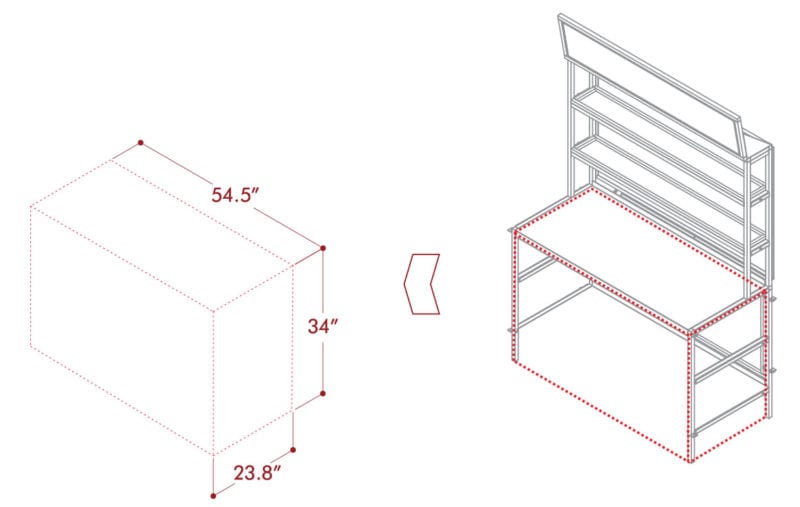

Available space with bottom shelf

Volume: 19ft3


Available space without bottom shelf

Volume: 25.5ft3


Compatible Refrigeration Equipment

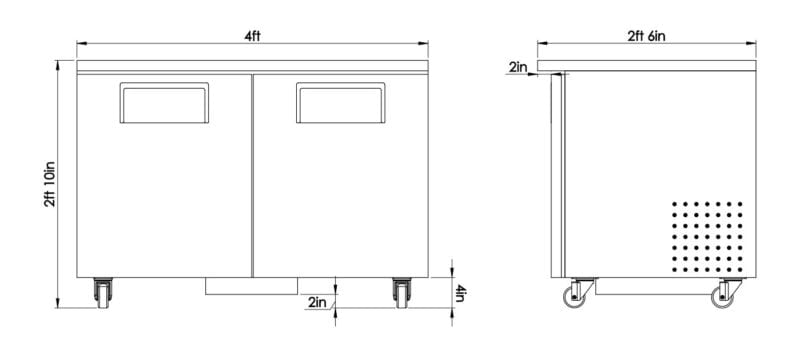

TUC-48-ADA-HC

Download PDF File

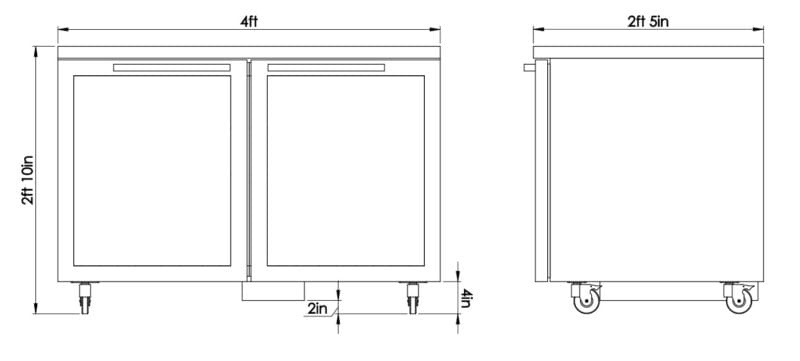

TUC-48G-ADA-HC~SPEC3

Download PDF File

Segment Combination


Accessories

Sink Kits

Stainless Steel Kitchen Sink

Download PDF File


Self Contained Sink Kits

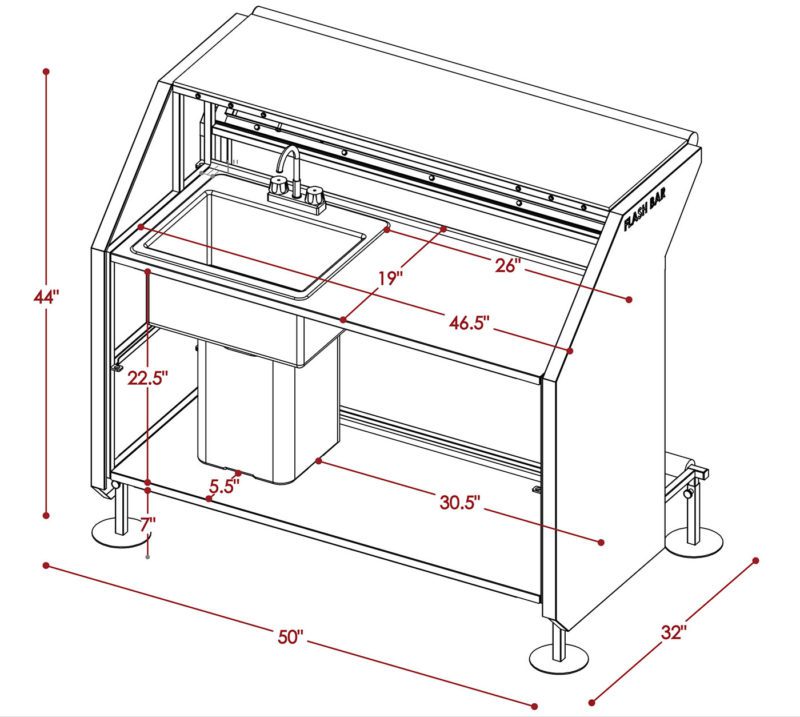

Grey Water Sink

Download PDF File

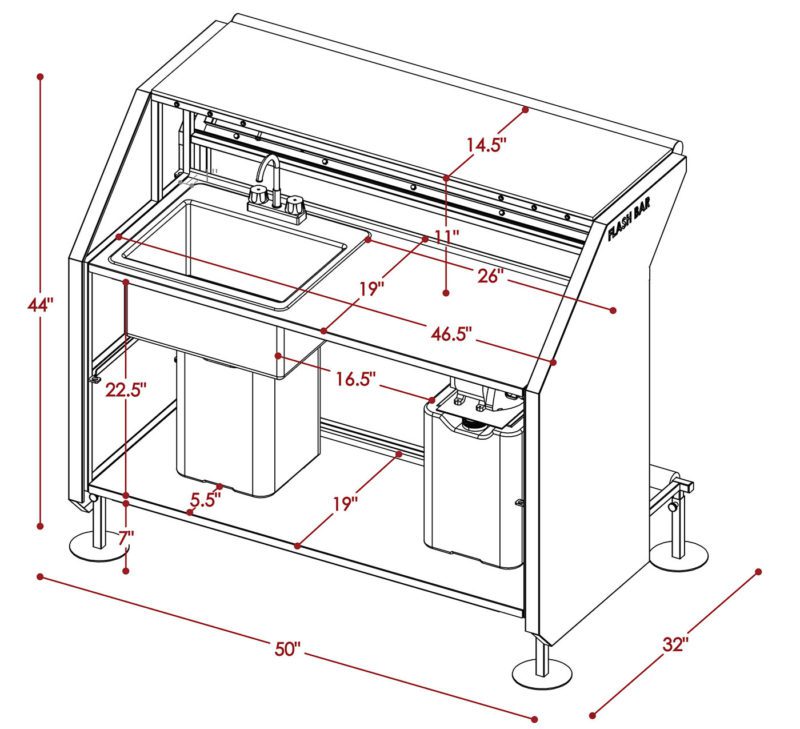

Self Contained Sink – Room Temp

Download PDF File

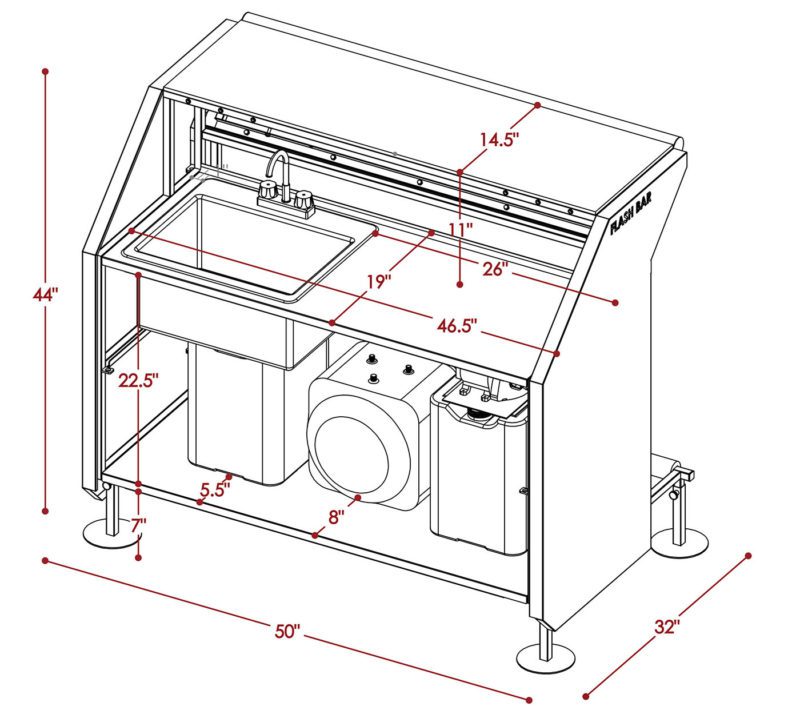

Self Contained Sink – Hot & Room Temp

Download PDF File

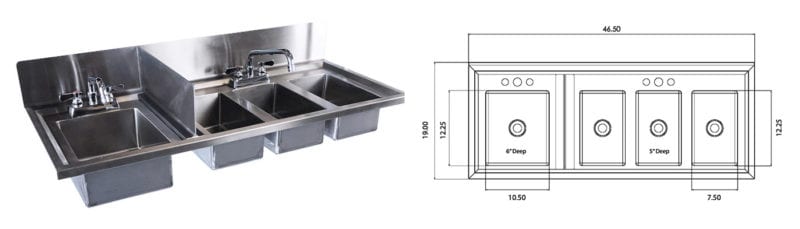

Stainless Steel 4 Basin Sink

Download PDF File

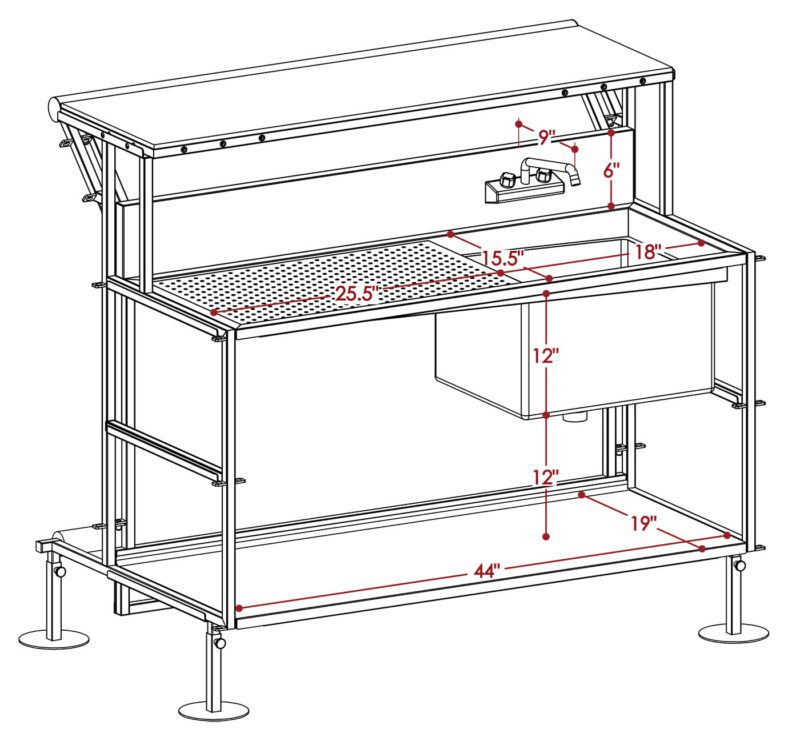

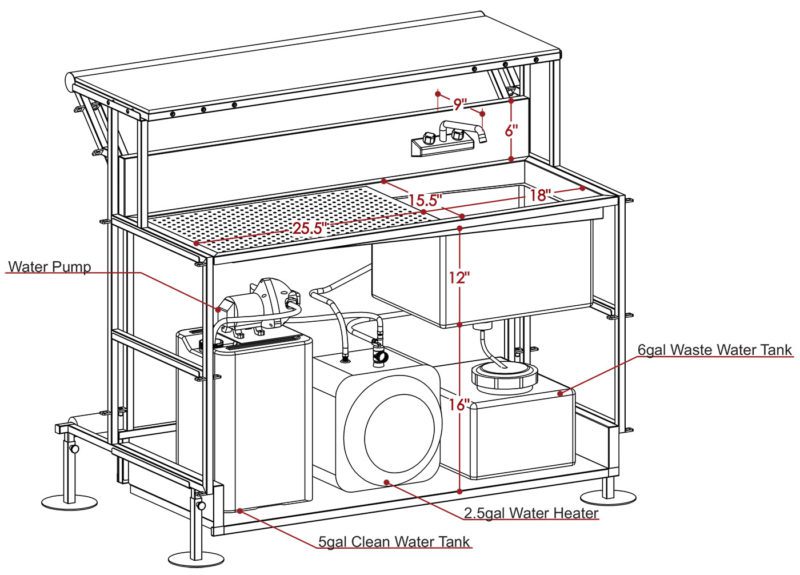

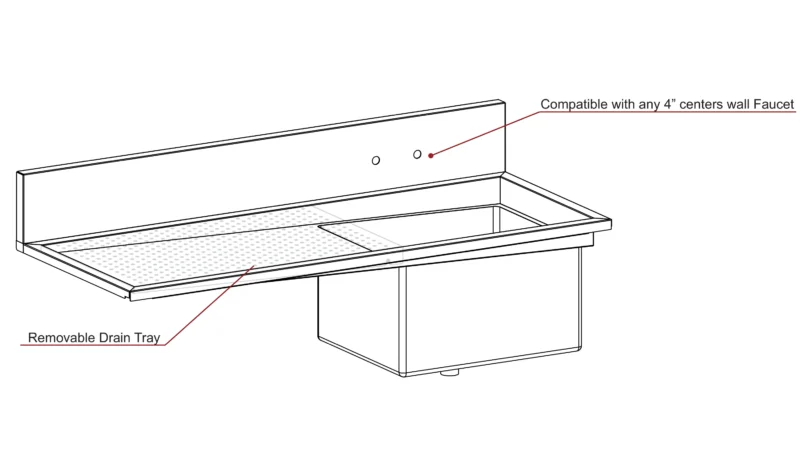

Sink with Drainboard

Download PDF File

Self Contained Sink with Drainboard

Download PDF File

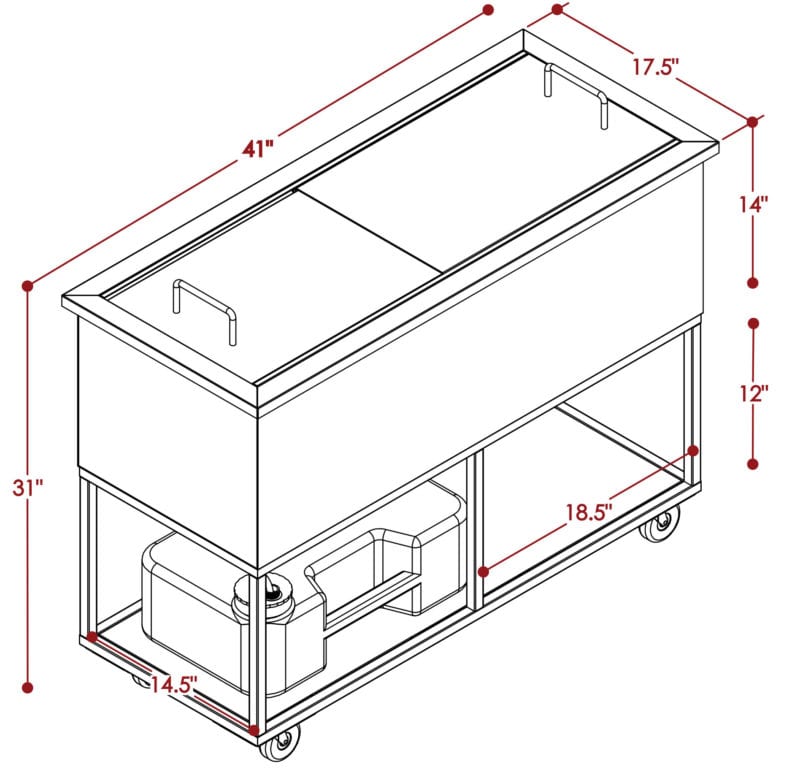

Ice Storage

25-LB Capacity Ice Bin

Download PDF File

35-LB Capacity Ice Bin

Download PDF File

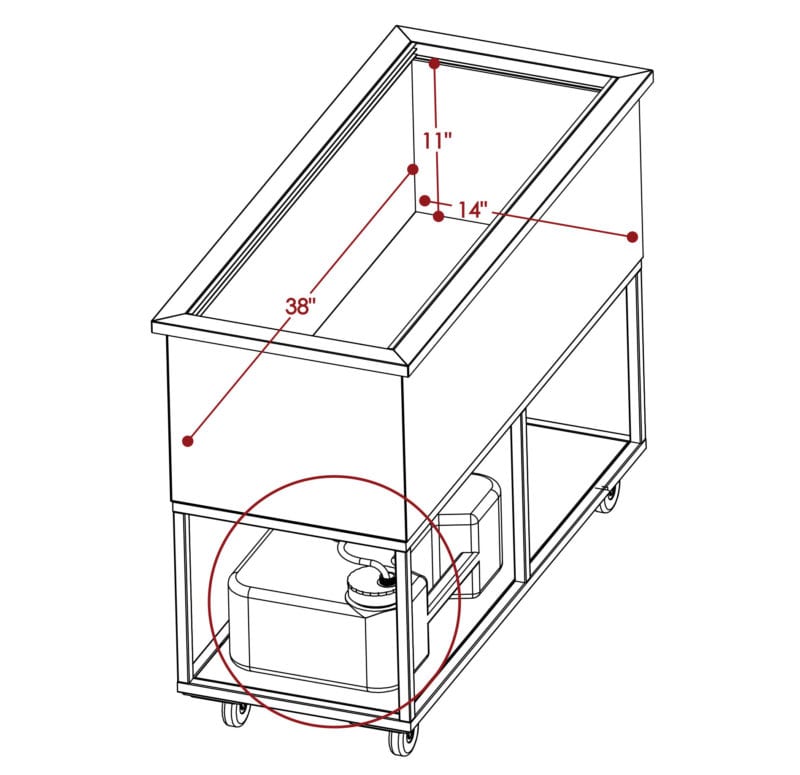

35-LB Capacity Ice Bin Dimensions

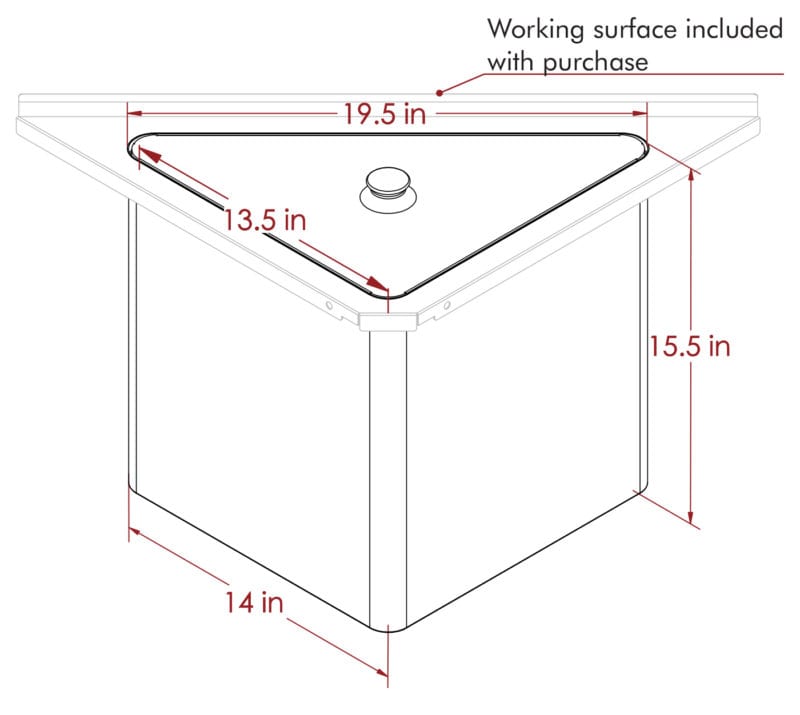

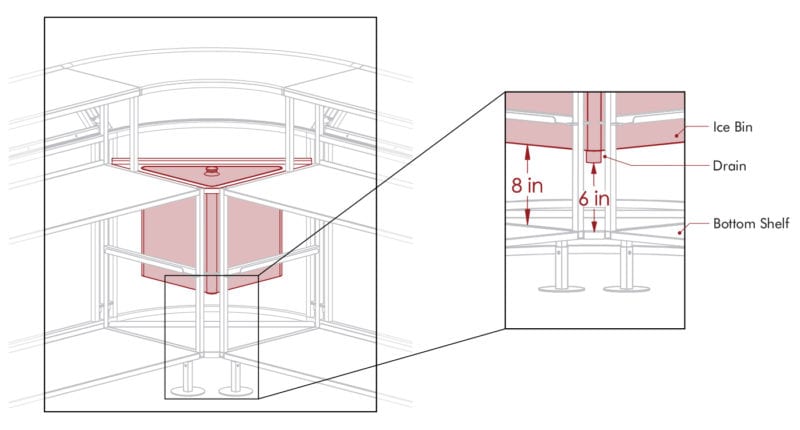

20-LB Capacity 90 Corner Ice Bin

Download PDF File

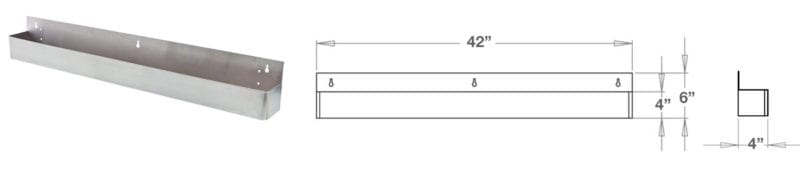

Speed Rails

Large Single Speed Rail

Download PDF File

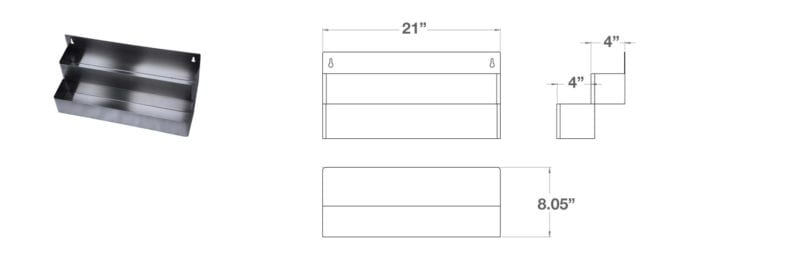

Half Tiered Speed Rail

Download PDF File

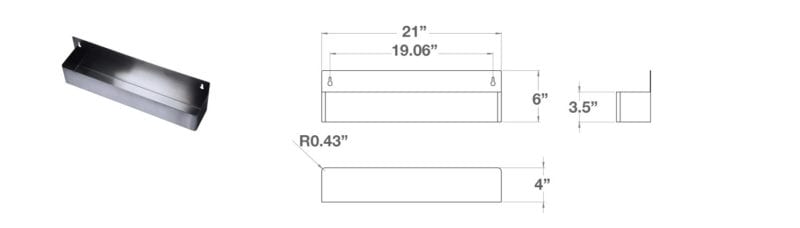

Half Single Speed Rail

Download PDF File

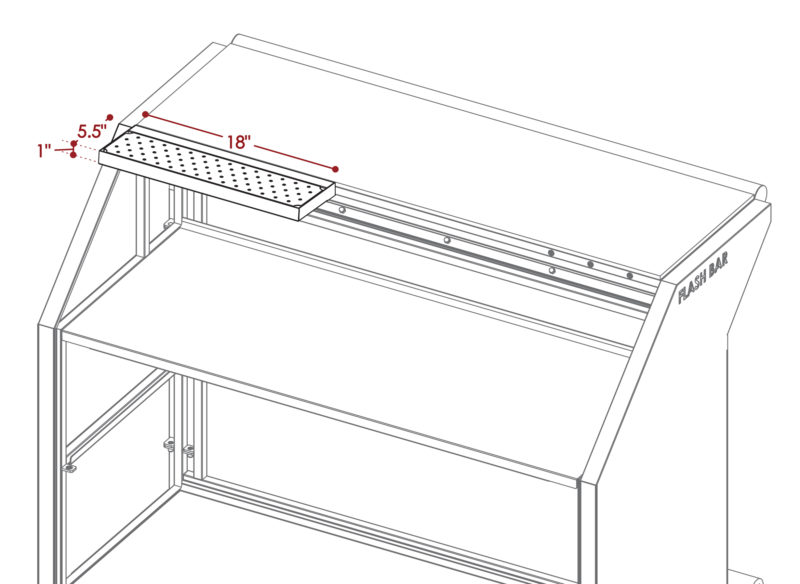

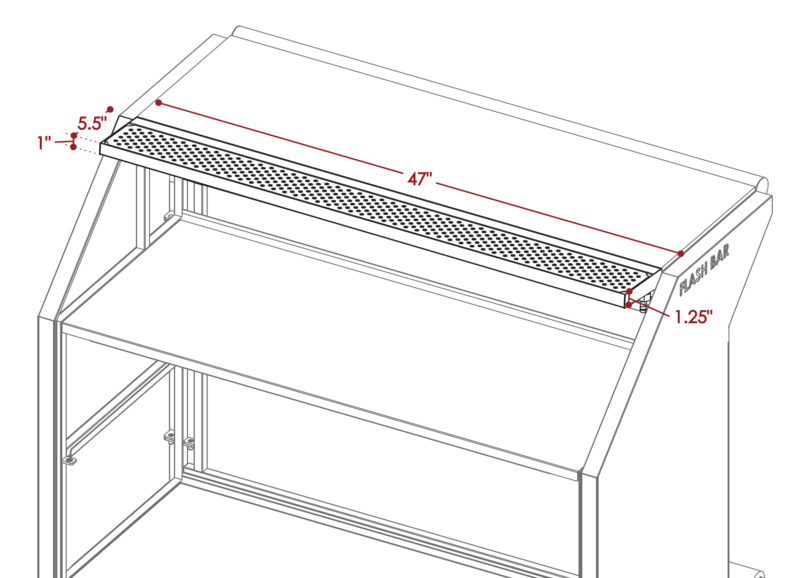

Showman’s Shelf

Regular Showman’s Shelf

Download PDF File


Full Length Showman’s Shelf

Download PDF File

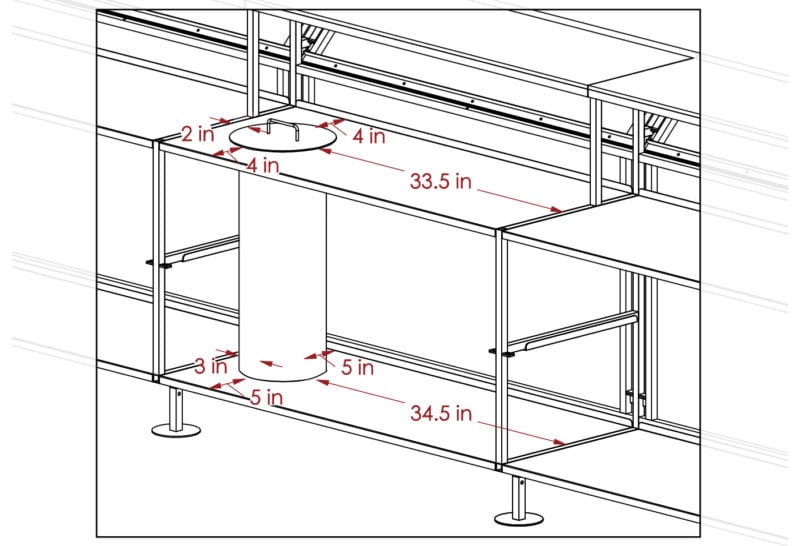

Trash Chutes

Trash Chute – Straight Segment

Download PDF File


Trash Chute – 90 Corner Segment

Download PDF File

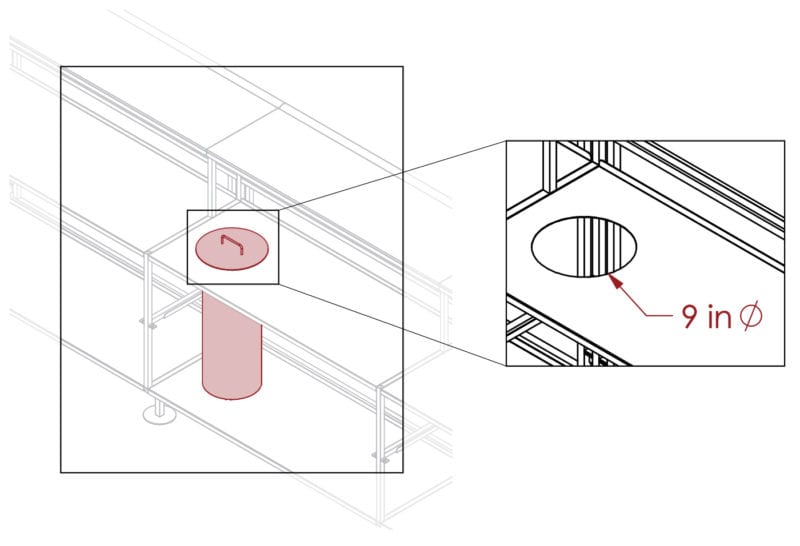

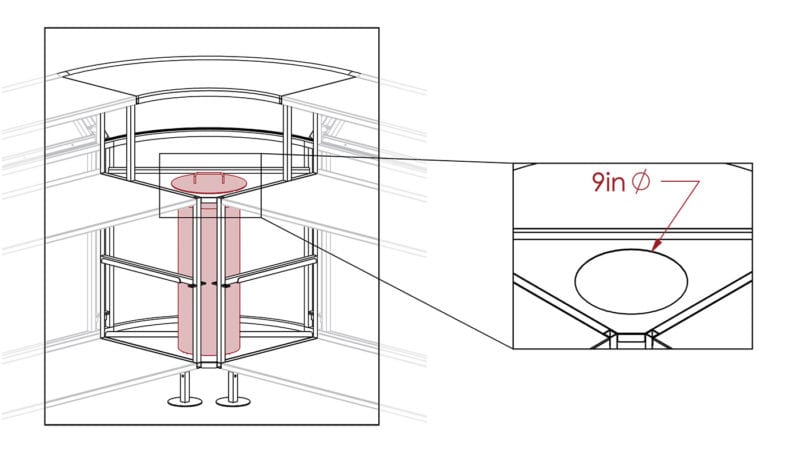

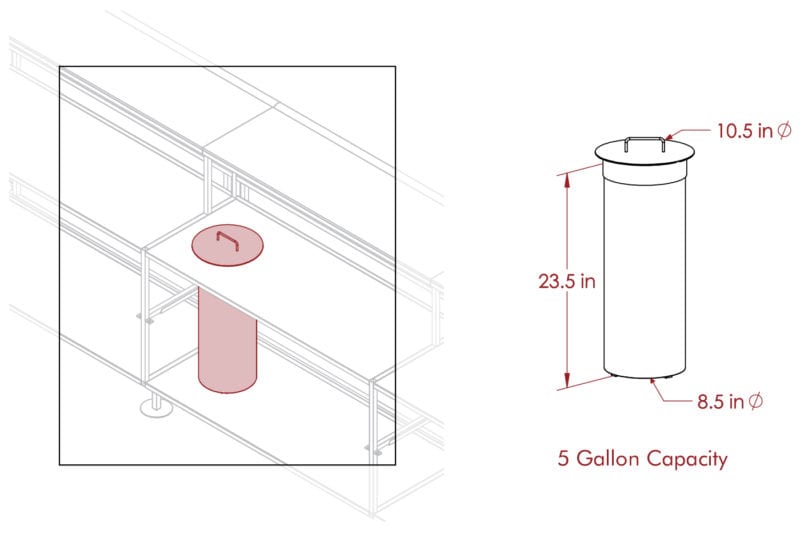

Trash Chute dimension and placement in 90 Corner segment

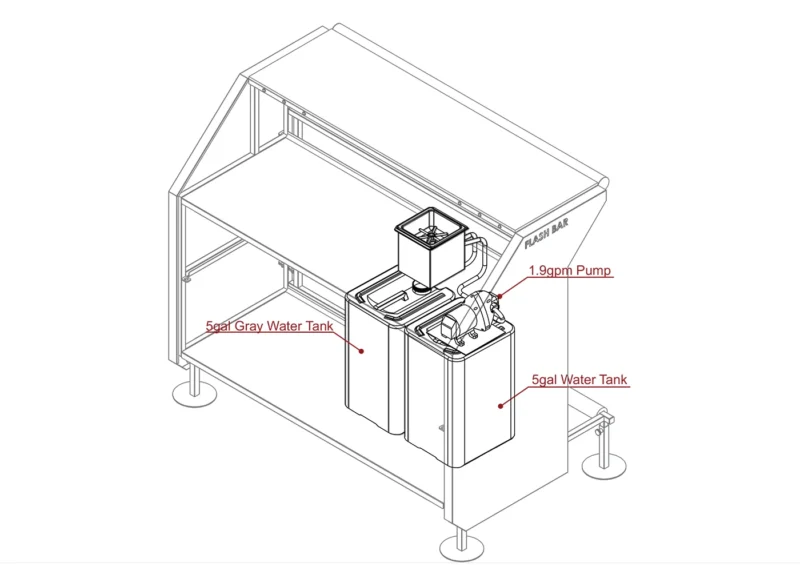

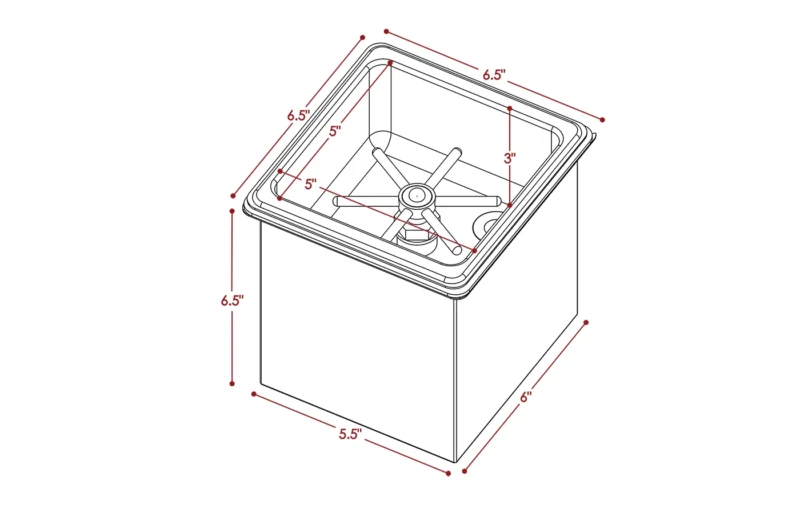

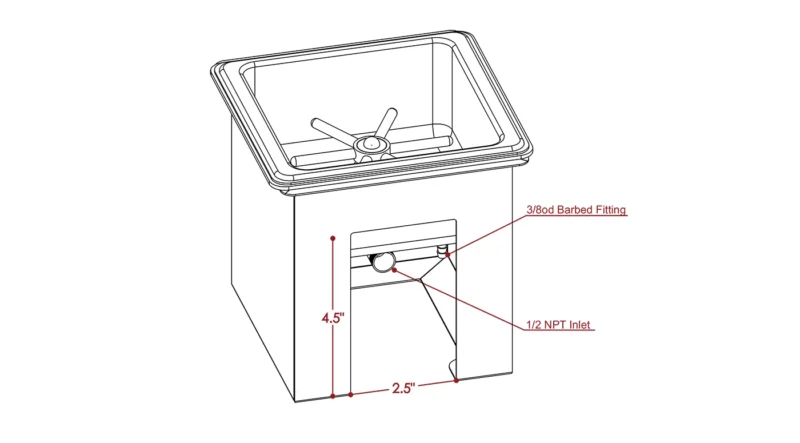

Glass Rinsing System

Download PDF File

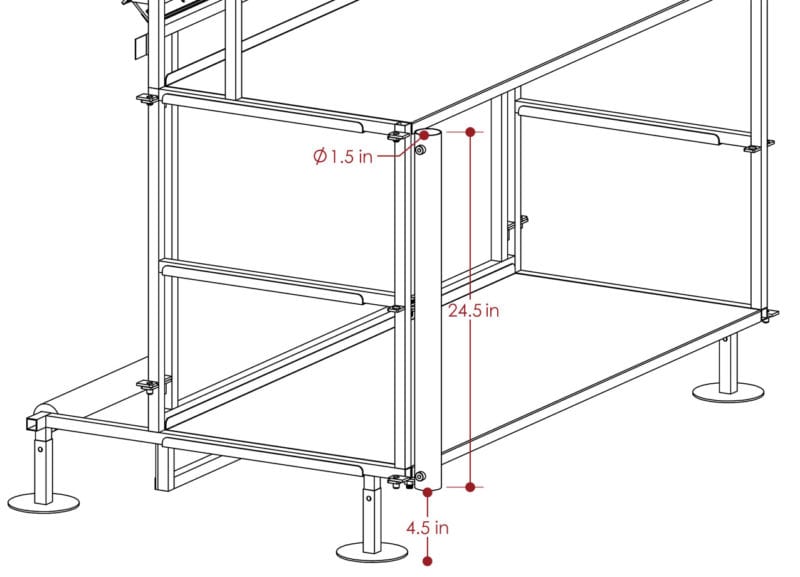

Umbrella Bracket

Download PDF File


Shelves

Single Cutout Shelf

Download PDF File

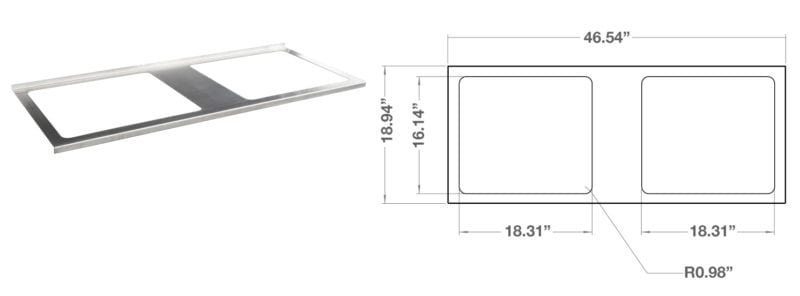

Double Cut-Out Shelf

Download PDF File


Locking Cabinet Doors

Download PDF File

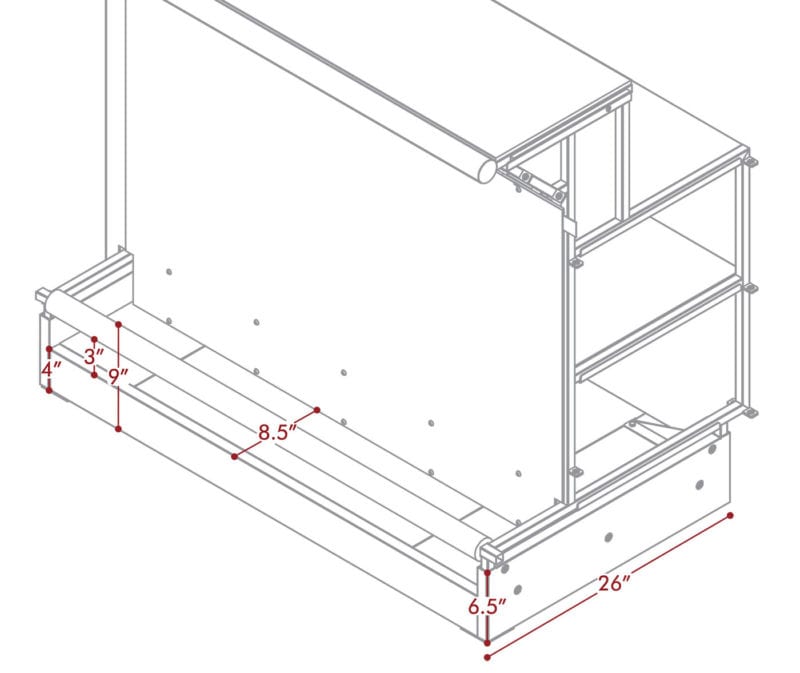

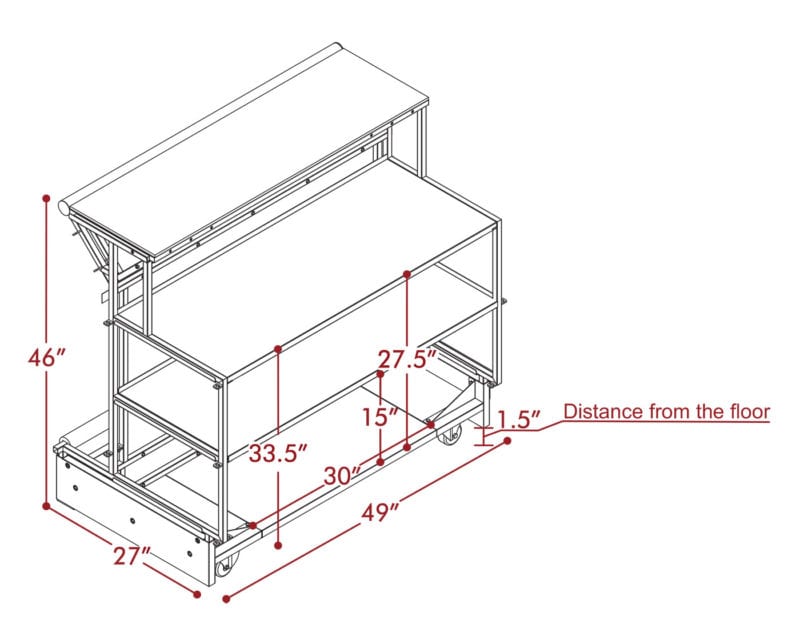

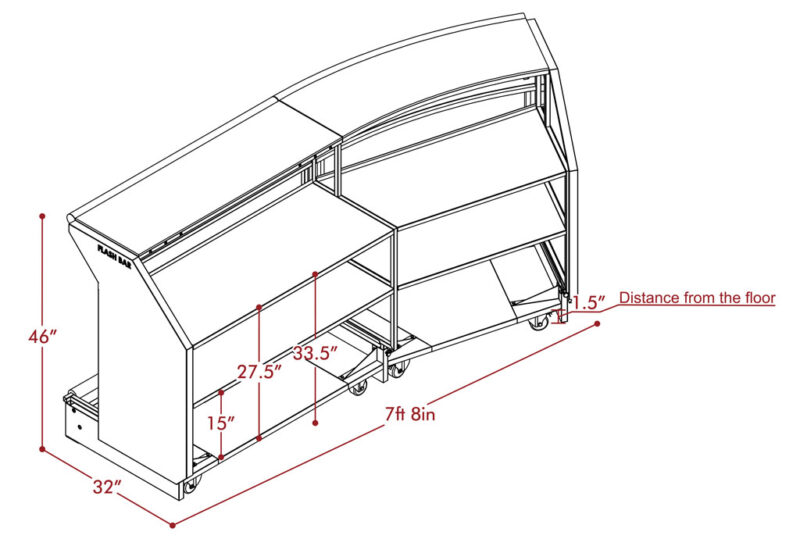

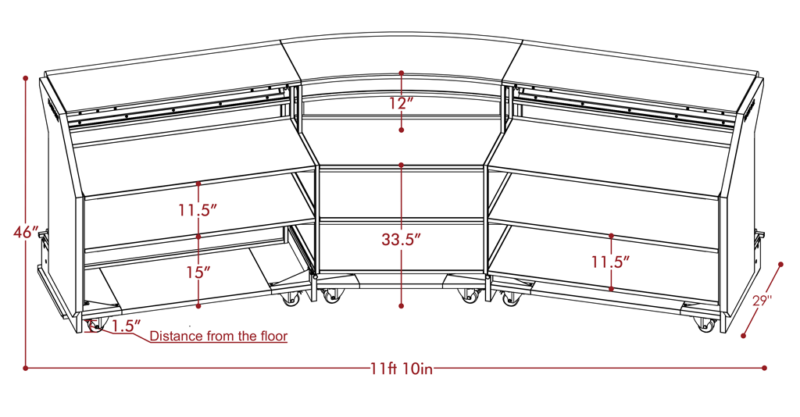

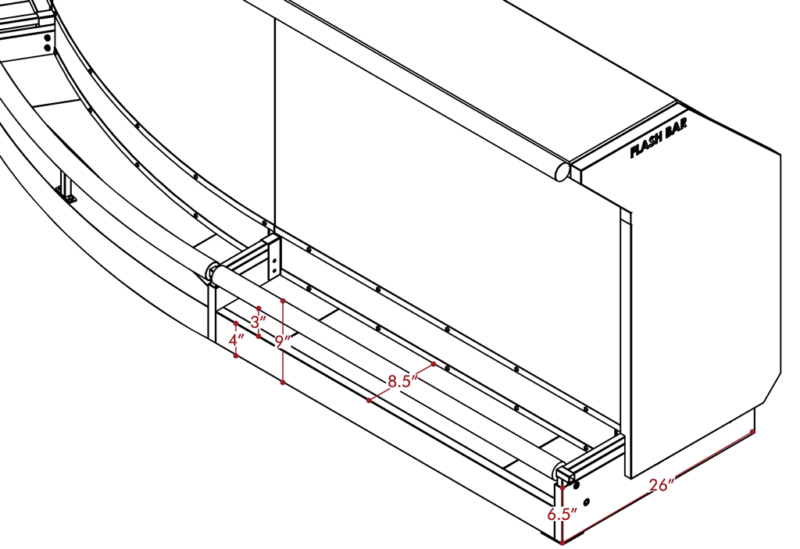

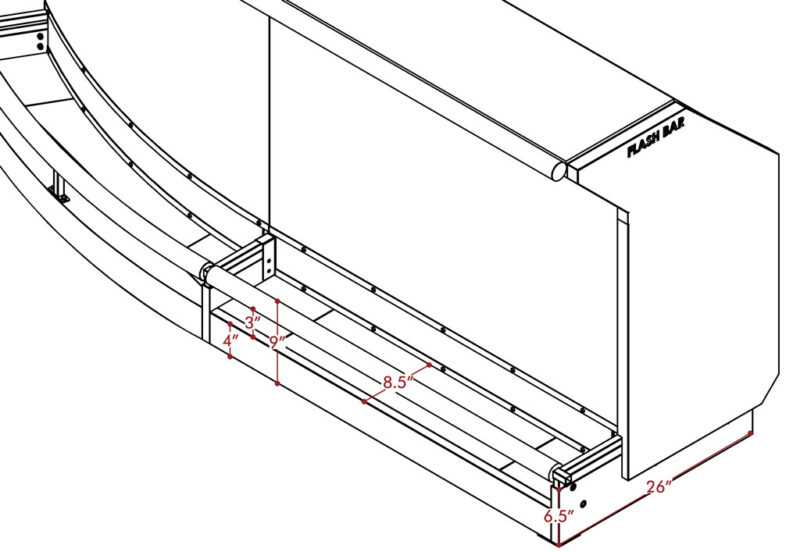

Rolling Base for Flash Bar

Straight segment on Wheel Base.

Download PDF File

Straight segment on Wheel Base

Straight segment and 90 corner on Wheel Base.

Download PDF File

Straight segment and 90 corner on Wheel Base

Two straight segments and 90 corner on Wheel Base.

Download PDF File

Two straight segments and 90 corner on Wheel Base.

Straight segments and circular segment on Wheel Base.

Download PDF File


Two straight segments and a circular segment on Wheel Base.

Download PDF File

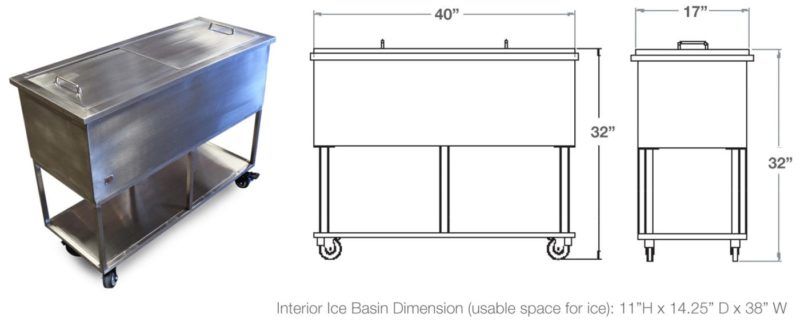

Under Bar Ice Bin

Download PDF File

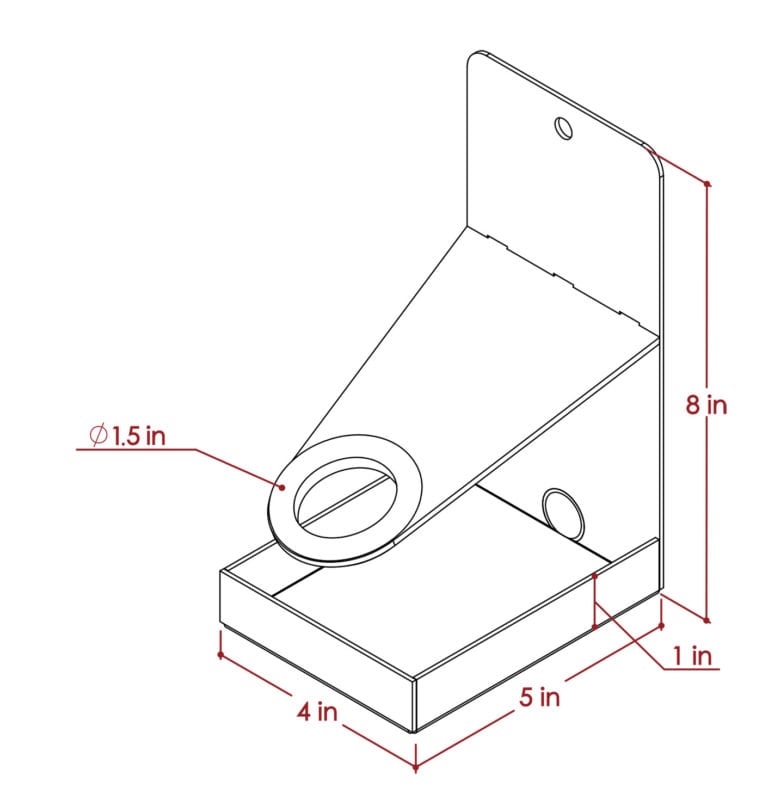

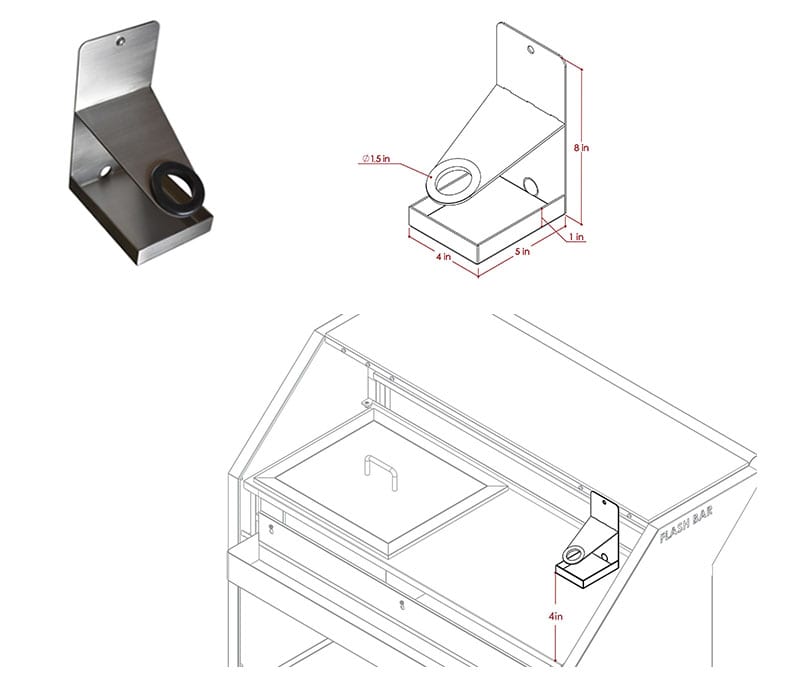

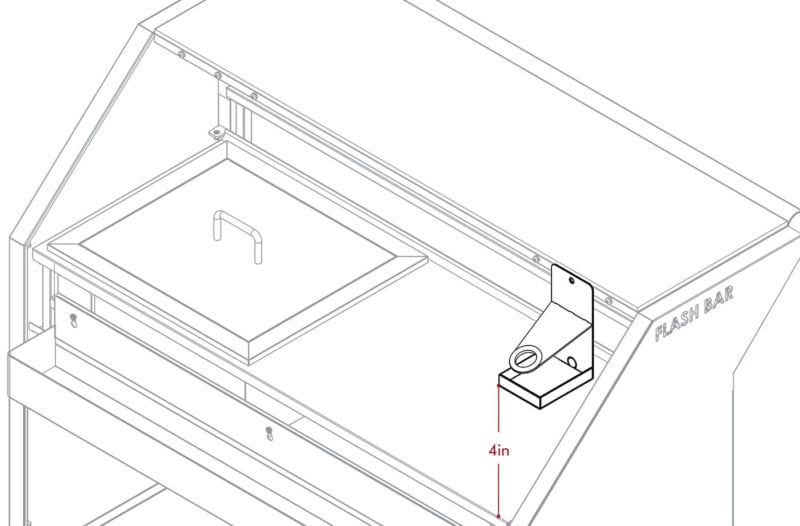

Soda Gun Mount

Download PDF File
